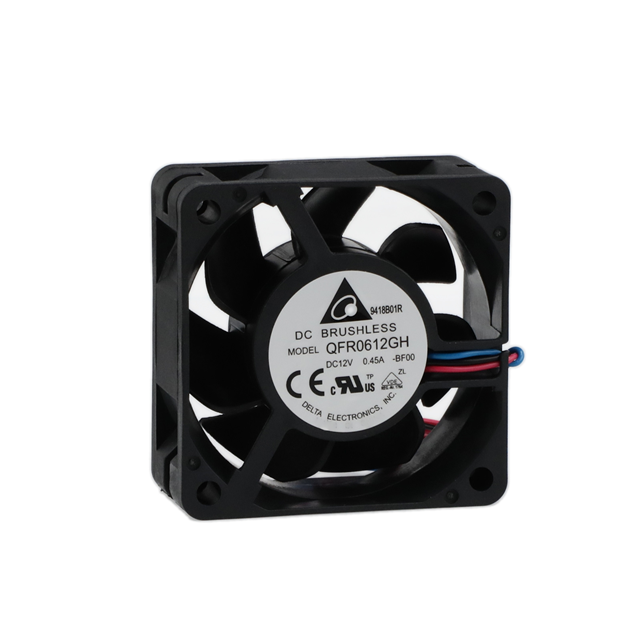

QFR0612GH-BF00

Obsolete

Delta Electronics

FAN AXIAL 60X25.4MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 60X25.4MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	QFR0612GH-BF00

Air Flow	1.03 m³/min
Air Flow	36.6 CFM
Approval Agency	CE, cURus, VDE
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	44.7 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.6 W
RPM	7600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	139 Pa
Static Pressure	0.558 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	90.26 g
Weight	0.199 lb
Width [y]	25.4 mm

Part	Size / Dimension [x]	Size / Dimension [y]	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Termination	Approval Agency	Material - Blade	Width [y]	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Current Rating (Amps)	Power (Watts)	Lifetime @ Temp.	RPM	Static Pressure	Static Pressure	Material - Frame	Ingress Protection	Noise	Weight	Weight	Air Flow	Air Flow	Features
Delta Electronics QFR0612UHE-PM00	60 mm	60 mm	Ball	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	2 Wire Leads	CE CSA UL VDE	Plastic	38 mm	13.2 VDC	7 V	12 VDC	1.1 A	13.2 W	50000 Hrs	13000 RPM	2.194 in H2O	546.5 Pa	Plastic	IP55 - Dust Protected Water Resistant	61.5 dB(A)	130.18 g	0.287 lb
Delta Electronics QFR0612EH-BF00	60 mm	60 mm	Ball	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	3 Wire Leads	CE cURus VDE	Plastic	25.4 mm	13.2 VDC	7 V	12 VDC	0.2 A	2.4 W	70000 Hrs	6000 RPM	0.353 in H2O	88 Pa	Plastic		39 dB(A)	90.26 g	0.199 lb	0.809 mł/min	28.9 CFM	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics QFR0612GH-BF00	60 mm	60 mm	Ball	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	3 Wire Leads	CE cURus VDE	Plastic	25.4 mm	13.2 VDC	7 V	12 VDC		3.6 W	70000 Hrs	7600 RPM	0.558 in H2O	139 Pa	Plastic		44.7 dB(A)	90.26 g	0.199 lb	1.03 m³/min	36.6 CFM	Locked Rotor Protection Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 36.6 CFM (1.03m³/min) 3 Wire Leads

Technical documentation and resources

No documents available
