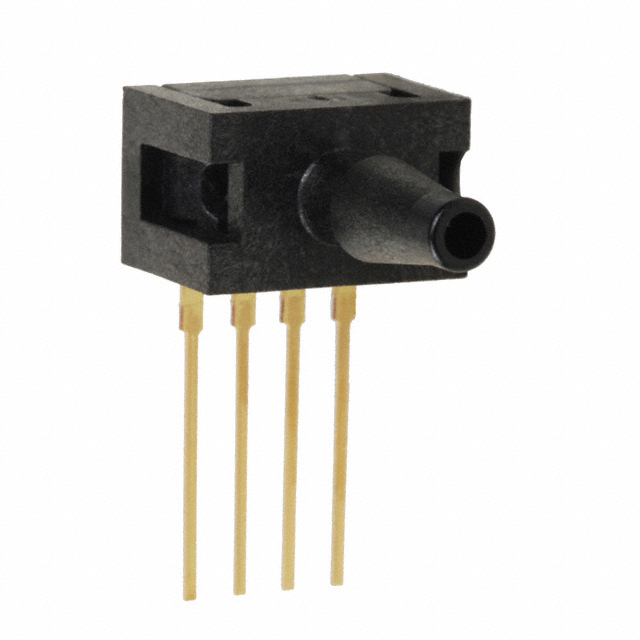

26PCFEB6G

Active

Honeywell Sensing and Productivity Solutions

SENSOR 100PSIC 0.18" 0.1V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 100PSIC 0.18" 0.1V

Technical Specifications

Parameters and characteristics for this part

Part	Output [Min]	Output [Max]	Applications	Pressure Type	Features	Operating Pressure	Operating Pressure	Package / Case	Mounting Type	Port Size [custom]	Port Size [custom]	Port Size [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Maximum Pressure	Maximum Pressure	Accuracy
Honeywell Sensing and Productivity Solutions 26PCFEB6G	0 mV	100 mV	Board Mount	Compound	Temperature Compensated	100 PSI	689.48 kPa	4-SIP Module	Through Hole	0.18 "	Male	4.7 mm	2.5 V	16 V	Barbed	85 °C	-40 °C	Wheatstone Bridge	1378.95 kPa	200 PSI	0.6 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor ±100PSI (±689.48kPa) Compound Male - 0.18" (4.7mm) Tube 0 mV ~ 100 mV (10V) 4-SIP Module
