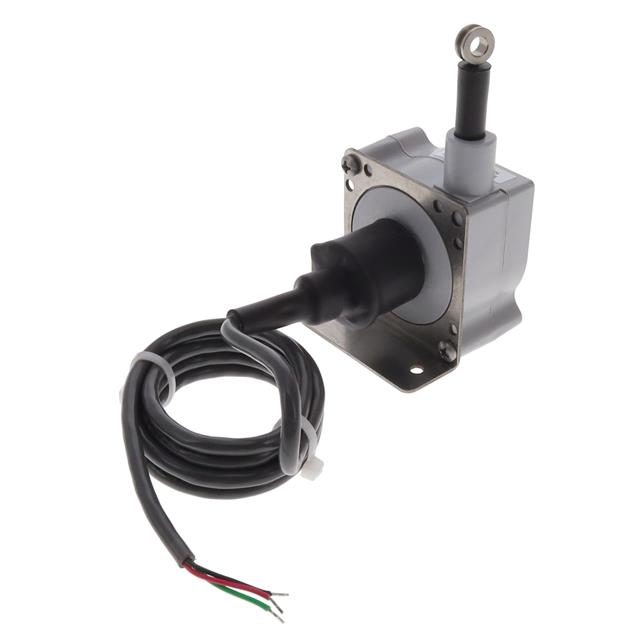

SP3-12
ActiveTE Connectivity Measurement Specialties
POT STRING 12.5 INCH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SP3-12
ActiveTE Connectivity Measurement Specialties
POT STRING 12.5 INCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SP3-12 |
|---|---|
| Actuator Type | String Potentiometer |
| For Measuring | Linear Position |
| Linear Range [Max] | 1270 mm |
| Linear Range [Max] | 50 in |
| Linear Range [Min] | 0 in |
| Linear Range [Min] | 0 mm |
| Linearity | 0.25 % |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -18 °C |
| Output [Max] | 20 mA, 10 V |
| Output [Min] | 0 mV, 4 mA |
| Package / Case | Box with Connector |
| Termination Style | Wire Leads |
| Voltage - Supply [Max] | 40 VDC, 32 VDC |
| Voltage - Supply [Min] | 12 V, 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 589.91 | |
| 5 | $ 497.72 | |||
| 10 | $ 462.62 | |||
Description
General part information
SP3 Series
Sensor Linear Position String Potentiometer Wire Leads
