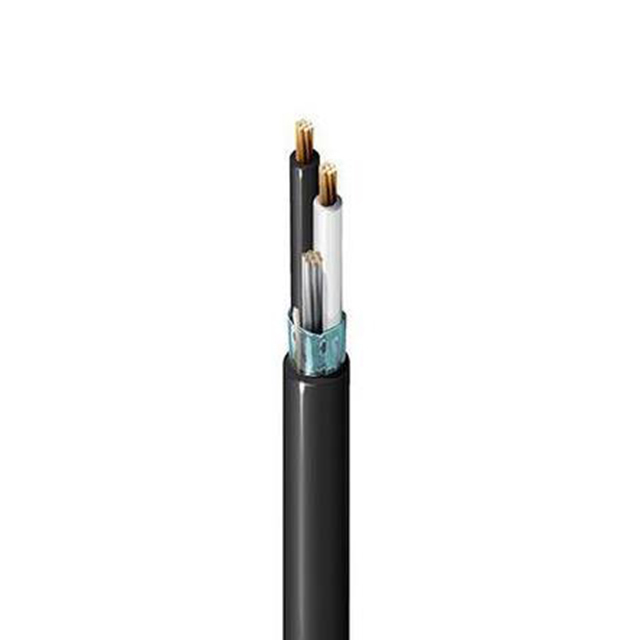

1067A 0105000

Active

Belden Inc.

MULTI-PAIR 32COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 32COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1067A 0105000

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.793 in
Jacket (Insulation) Diameter [diameter]	20.14 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Number of Conductors	32
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	18 AWG

Part	Number of Conductors	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Material	Jacket Color	Cable Type	Shield Coverage	Wire Gauge	Conductor Insulation
Belden Inc. 1067A 0105000	32	Drain Wire Rip Cord	0.793 in	20.14 mm	Foil	Aluminum	26 AWG	7	Copper Bare	Poly-Vinyl Chloride (PVC)	Black	Multi-Pair	100 %	18 AWG	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 10.06

General part information

32 (16 Pair Twisted) Conductor Multi-Pair Cable Black 18 AWG Foil 5000' (1524.0m)
