UG-913/U(42)

Active

Hirose Electric USA, Inc.

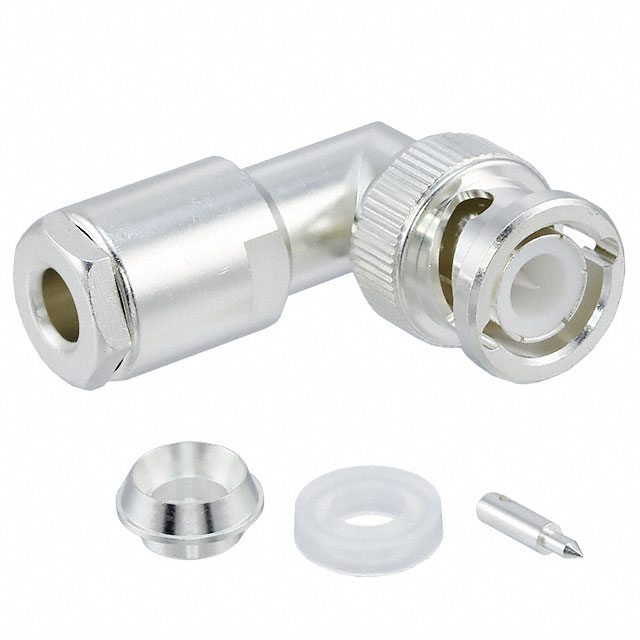

CONN BNC PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN BNC PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	UG-913/U(42)

Body Finish	Silver
Body Material	Brass
Cable Group [custom]	58, RG-55
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Clamp

Part	Center Contact Material	Body Finish	Shield Termination	Center Contact Plating	Contact Termination	Fastening Type	Housing Color	Connector Type	Impedance	Body Material	Connector Style	Cable Group [custom]	Mounting Type	Mating Cycles	Number of Ports	Dielectric Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Hirose Electric USA, Inc. UG-913/U(42)	Brass	Silver	Clamp	Silver	Solder	Bayonet Lock	Silver	Male Pin Plug	50 Ohms	Brass	BNC	58 RG-55	Free Hanging (In-Line) Right Angle	1000	1	Polytetrafluoroethylene (PTFE)	1 GHz	-30 ░C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 42.34

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
