TIP41C-S

Obsolete

Bourns Inc.

TRANS NPN 100V 6A TO220

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TRANS NPN 100V 6A TO220

Technical Specifications

Parameters and characteristics for this part

Specification	TIP41C-S

DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	15
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C

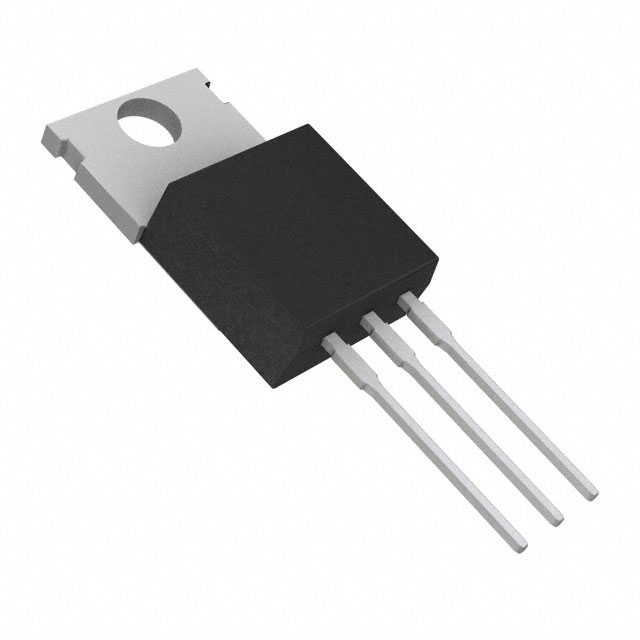

Package / Case	TO-220-3
Power - Max [Max]	2 W
Supplier Device Package	TO-220
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	1.5 V
Voltage - Collector Emitter Breakdown (Max) [Max]	100 V

Part	Mounting Type	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Transistor Type	Package / Case
Bourns Inc. TIP41C-S	Through Hole	2 W	15	1.5 V	150 °C	-65 °C	100 V	TO-220	NPN	TO-220-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 100 V 6 A 2 W Through Hole TO-220
