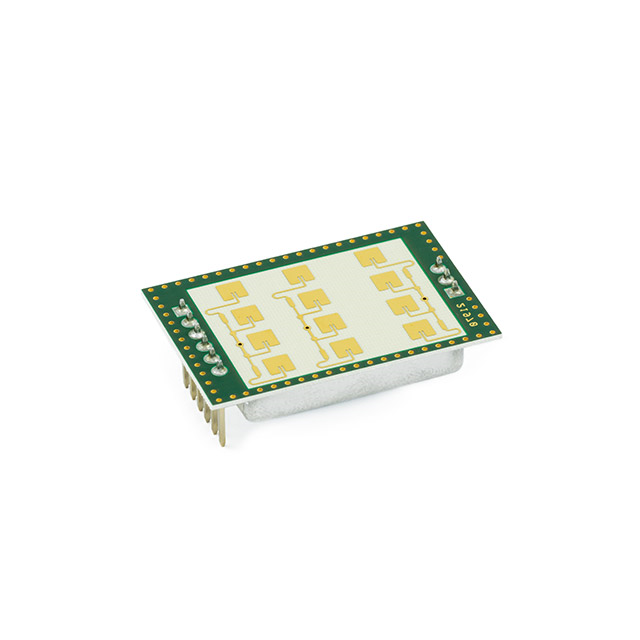

K-LC7-RFB-00H
ActiveRFbeam Microwave GmbH
RF TXRX MOD RADAR CER PATCH TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K-LC7-RFB-00H
ActiveRFbeam Microwave GmbH
RF TXRX MOD RADAR CER PATCH TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K-LC7-RFB-00H |
|---|---|
| Antenna Type | Integrated, Ceramic Patch |
| Current - Receiving | 90 mA |
| Current - Transmitting | 90 mA |
| Frequency [Max] | 24.25 GHz |
| Frequency [Min] | 24 GHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 9-DIP Module |
| Power - Output | 12 dBm |
| RF Family/Standard | Radar |
| Sensitivity | -108 dBm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 40.96 | |
| 10 | $ 37.95 | |||
Description
General part information
K-LC7 Series
Radar Transceiver Module 24GHz ~ 24.25GHz Integrated, Ceramic Patch Through Hole
Documents
Technical documentation and resources
