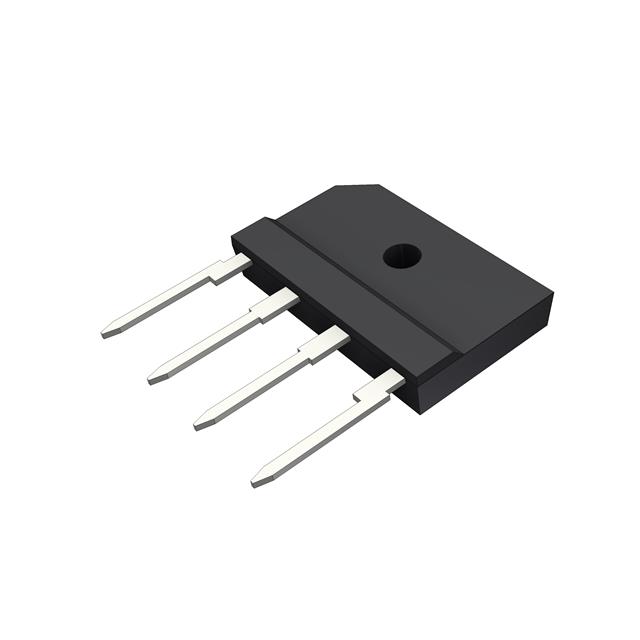

4GBJ406

Active

HY Electronic (Cayman) Limited

GLASS PASSIVATED BRIDGE RECTIFIE

Search across all available documentation for this part.

Active

HY Electronic (Cayman) Limited

GLASS PASSIVATED BRIDGE RECTIFIE

Technical Specifications

Parameters and characteristics for this part

Specification	4GBJ406

Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, GBJ
Supplier Device Package	4GBJ
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.05 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Mounting Type	Supplier Device Package	Diode Type	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Package / Case	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If
HY Electronic (Cayman) Limited 4GBJ406	Through Hole	4GBJ	Single Phase	Standard	-55 °C	150 °C	4 A	5 µA	4-SIP GBJ	600 V	1.05 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole 4GBJ

Technical documentation and resources

No documents available
