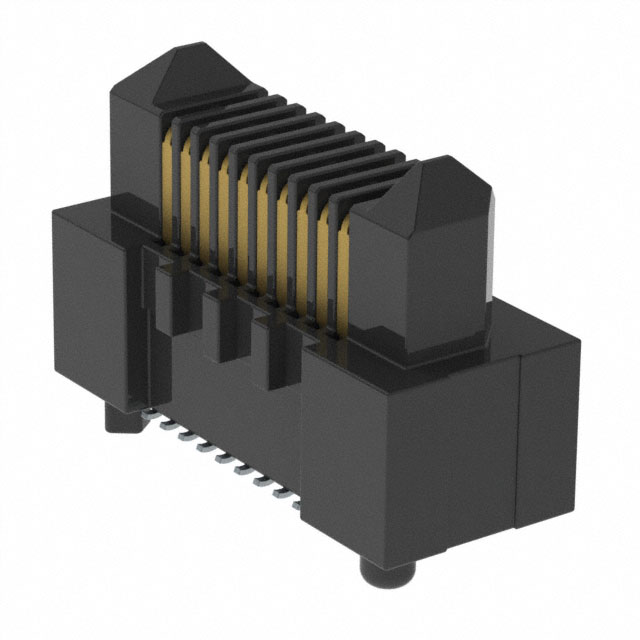

ER8-20P-0.8SV-5H
ActiveHirose Electric USA, Inc.
BOARD STACKING CONNECTOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ER8-20P-0.8SV-5H
ActiveHirose Electric USA, Inc.
BOARD STACKING CONNECTOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ER8-20P-0.8SV-5H |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Height Above Board | 8.91 mm |
| Height Above Board | 0.351 in |
| Mated Stacking Heights | 10 mm, 12 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.24 | |
| 10 | $ 3.85 | |||
| 25 | $ 3.65 | |||
| 50 | $ 3.56 | |||
| 100 | $ 3.39 | |||
| Digi-Reel® | 1 | $ 4.24 | ||
| 10 | $ 3.85 | |||
| 25 | $ 3.65 | |||
| 50 | $ 3.56 | |||
| 100 | $ 3.39 | |||
| Tape & Reel (TR) | 325 | $ 2.61 | ||
| 650 | $ 2.43 | |||
| 975 | $ 2.33 | |||
| 1625 | $ 2.22 | |||
| 2275 | $ 2.15 | |||
| 3250 | $ 2.08 | |||
Description
General part information
ER8-20P Series
20 Position Connector Header, Center Strip Contacts Surface Mount Gold
