SA486000
ActiveOn Shore Technology Inc.

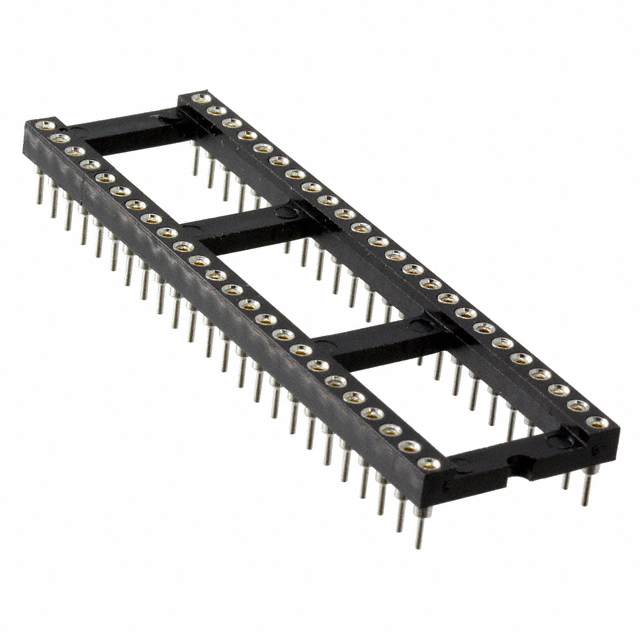

CONN IC DIP SOCKET 48POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SA486000
ActiveOn Shore Technology Inc.
CONN IC DIP SOCKET 48POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SA486000 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 4 mOhm |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Housing Material | Glass Filled, Polyester, Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 48 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.93 | |
| 10 | $ 2.24 | |||
| 25 | $ 2.02 | |||
| 50 | $ 1.86 | |||
| 100 | $ 1.73 | |||
| 250 | $ 1.56 | |||
| 500 | $ 1.45 | |||
| 1000 | $ 1.36 | |||
| 2500 | $ 1.24 | |||
Description
General part information
SA48600 Series
48 (2 x 24) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
