17E-1727-1
ActiveAmphenol ICC (Commercial Products)

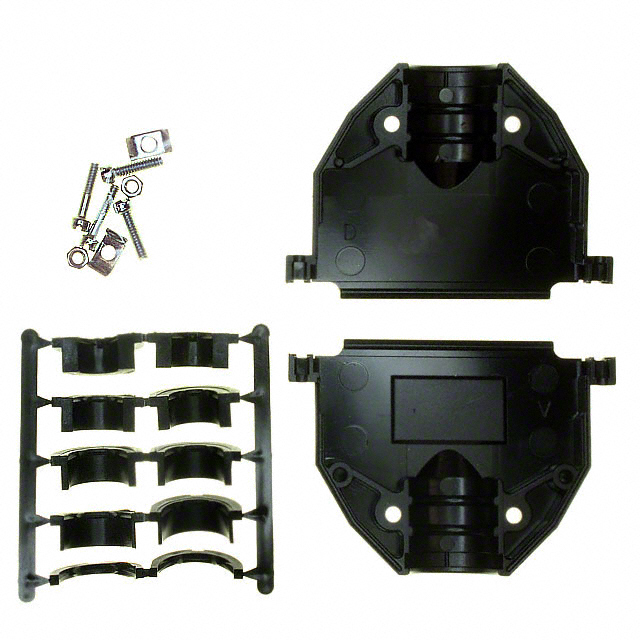

CONN BACKSHELL 37POS 180DEG BLK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17E-1727-1
ActiveAmphenol ICC (Commercial Products)
CONN BACKSHELL 37POS 180DEG BLK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17E-1727-1 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Black |
| Compatible D-Sub Size | 37pos, HD62pos |
| Compatible Shell Size | C |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Grommets |
| Material | Thermoplastic |
| Number of Positions | 37 |
| Primary Material | Plastic |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.90 | |
| 10 | $ 4.45 | |||
| 25 | $ 4.21 | |||
| 50 | $ 4.11 | |||
| 100 | $ 3.92 | |||
| 250 | $ 3.43 | |||
| 500 | $ 3.33 | |||
| 1000 | $ 2.84 | |||
| 2500 | $ 2.65 | |||
Description
General part information
17E1727 Series
37 Position Two Piece Backshell Connector Black 180° Unshielded
Documents
Technical documentation and resources
