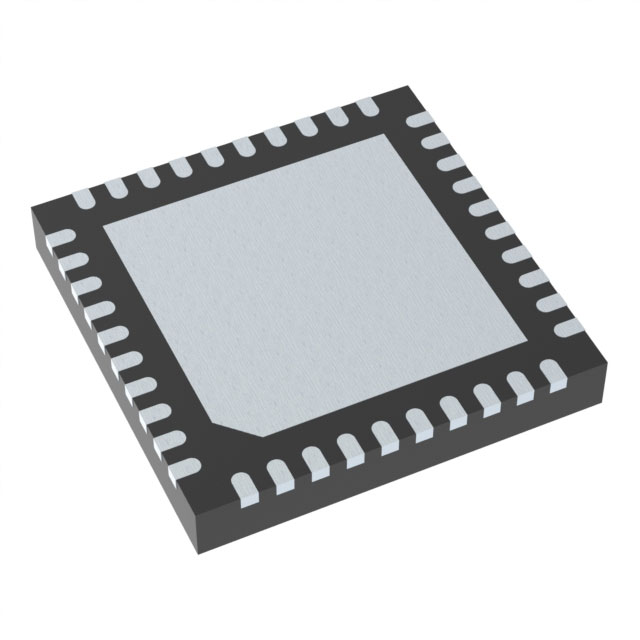

RT6190GQW
ActiveRichtek USA Inc.
IC REG CTRLR BUCK-BOOST WQFN-40
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT6190GQW
ActiveRichtek USA Inc.
IC REG CTRLR BUCK-BOOST WQFN-40
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT6190GQW |
|---|---|
| Clock Sync | False |
| Control Features | Soft Start, Frequency Control, Current Limit, Power Good, Saturation, Enable |
| Frequency - Switching [Max] | 1 MHz |
| Frequency - Switching [Min] | 250 kHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Package / Case | 40-WFQFN Exposed Pad |
| Serial Interfaces | I2C |
| Supplier Device Package | 40-WQFN (5x5) |
| Synchronous Rectifier | False |
| Topology | Buck-Boost |
| Voltage - Supply (Vcc/Vdd) [Max] | 36 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.69 | |
| 10 | $ 6.95 | |||
| 25 | $ 6.63 | |||
| 100 | $ 5.75 | |||
| 250 | $ 5.49 | |||
| 500 | $ 5.01 | |||
| Digi-Reel® | 1 | $ 7.69 | ||
| 10 | $ 6.95 | |||
| 25 | $ 6.63 | |||
| 100 | $ 5.75 | |||
| 250 | $ 5.49 | |||
| 500 | $ 5.01 | |||
| Tape & Reel (TR) | 1500 | $ 4.36 | ||
Description
General part information
RT6190 Series
Buck-Boost Regulator Positive Output Step-Up/Step-Down I2C DC-DC Controller IC 40-WQFN (5x5)
