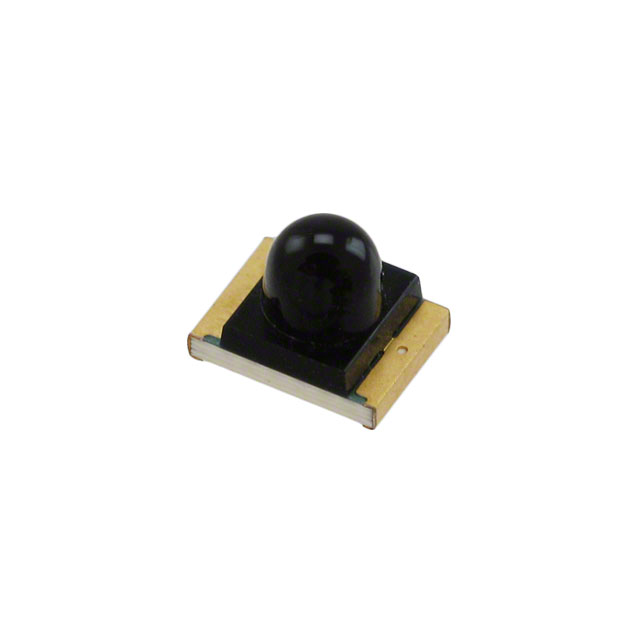

PT42-21B/TR8
ActiveEverlight Electronics Co Ltd
SENSOR PHOTO 940NM TOP VIEW 1210
Deep-Dive with AI
Search across all available documentation for this part.
PT42-21B/TR8
ActiveEverlight Electronics Co Ltd
SENSOR PHOTO 940NM TOP VIEW 1210
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PT42-21B/TR8 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - Dark (Id) (Max) [Max] | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Power - Max [Max] | 75 mW |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.42 | |||
| 100 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.42 | |||
| 100 | $ 0.28 | |||
| Tape & Reel (TR) | 1000 | $ 0.21 | ||
| 2000 | $ 0.19 | |||
| 5000 | $ 0.18 | |||
| 10000 | $ 0.17 | |||
| 25000 | $ 0.17 | |||
| 50000 | $ 0.16 | |||
Description
General part information
PT42-21 Series
Phototransistors 940nm Top View 1210 (3225 Metric)
Documents
Technical documentation and resources
No documents available
