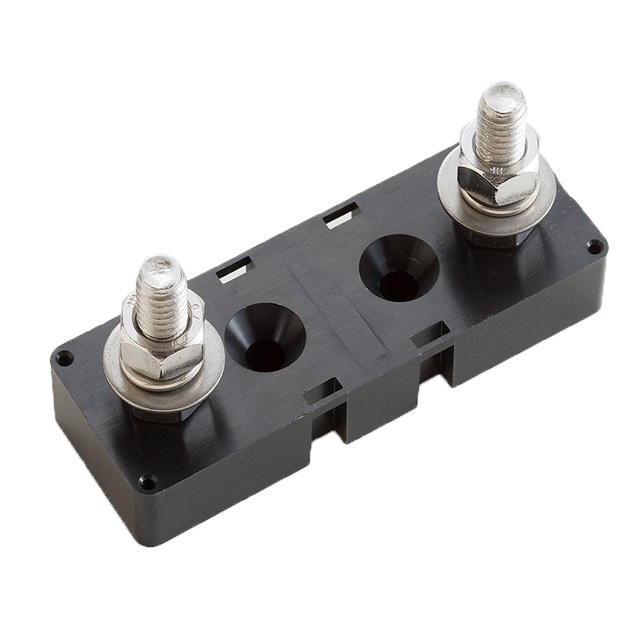

BLC-09-GT

Active

OptiFuse

FUSE BLOCK-LIMITER ANE/ANF, 500A

Search across all available documentation for this part.

Active

OptiFuse

FUSE BLOCK-LIMITER ANE/ANF, 500A

Technical Specifications

Parameters and characteristics for this part

Specification	BLC-09-GT

Contact Finish	Zinc
Contact Material	Steel
Current Rating (Amps)	500 A
For Use With/Related Products	5/16" Stud Mounted Fuses
Fuse Type	Bolt Down
Fuseholder Type	Block
Mounting Type	Chassis Mount
Number of Circuits	1
Orientation	Horizontal and Vertical
Termination Style	Bolt Down
Voltage	80 V

Part	Accessory Type	For Use With/Related Products	Voltage	Current Rating (Amps)	Fuse Type	Contact Finish	Fuseholder Type	Number of Circuits	Contact Material	Orientation	Mounting Type	Termination Style
OptiFuse BLC-09-GTC	Cover	BLC-09-GT Fuse Block
OptiFuse BLC-09-GT		5/16" Stud Mounted Fuses	80 V	500 A	Bolt Down	Zinc	Block	1	Steel	Horizontal and Vertical	Chassis Mount	Bolt Down

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.14

General part information

Fuse Block 500 A 80V 1 Circuit Bolt Down Chassis Mount
