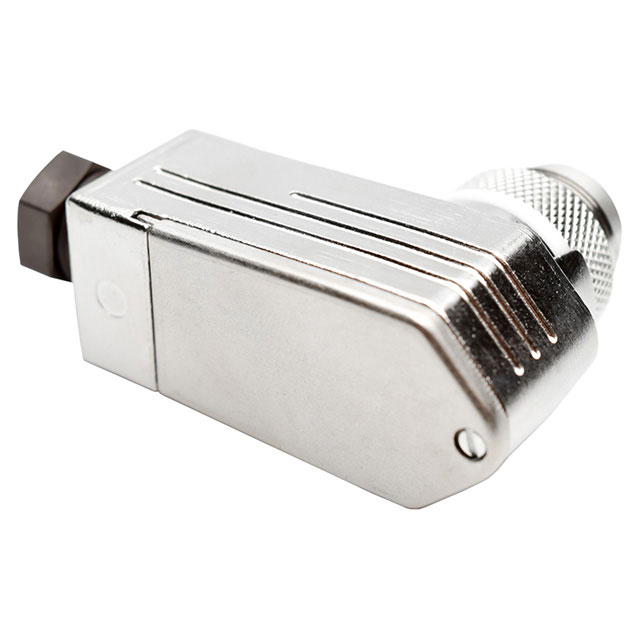

C09131K0081002U

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 8P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 8P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	C09131K0081002U

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Features	Strain Relief
Ingress Protection	IP69K, IP65, IP67
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-8
Shielding	Shielded
Voltage Rating	60 VDC

Part	Current Rating (Amps)	Color	Shell Material	Features	Contact Finish - Mating	Connector Type	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Type	Orientation	Shell Finish	Number of Positions	Shielding	Ingress Protection	Shell Size - Insert
Amphenol Tuchel Industrial C09131K0081002U	7 A	Silver	Die Cast	Strain Relief	Silver	Male Pins Plug	Metal	100 °C	-40 °C	60 VDC	Free Hanging (In-Line) Right Angle	Keyed	Nickel	8	Shielded	IP65 IP67 IP69K	M16-8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 21.01

General part information

8 Position Circular Connector Plug, Male Pins Solder Cup
