R331018000

Active

Radiall USA, Inc.

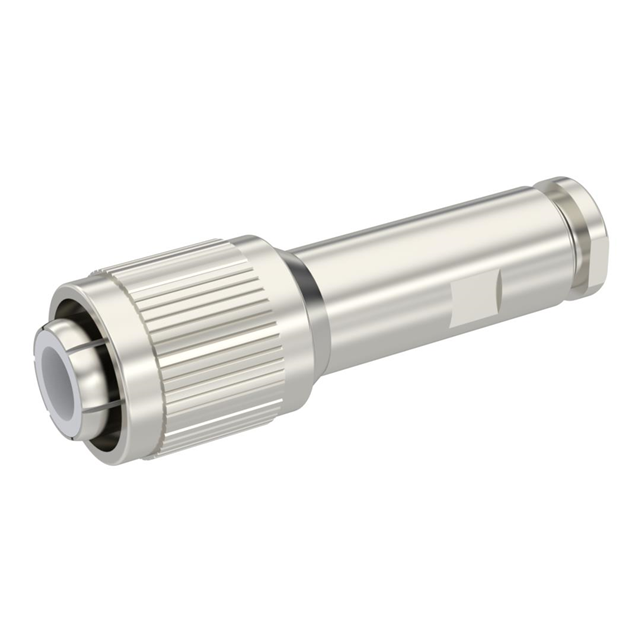

THT 20 / FEMALE STRAIGHT PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

THT 20 / FEMALE STRAIGHT PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R331018000

Body Finish	Nickel
Body Material	Brass
Cable Group	9, RG-8
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp

Part	Connector Type	Shield Termination	Impedance	Cable Group	Mounting Type	Dielectric Material	Center Contact Plating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Body Finish	Frequency - Max [Max]	Number of Ports	Fastening Type	Body Material	Center Contact Material
Radiall USA, Inc. R331018000	Male Pin Plug	Crimp	50 Ohms	9 RG-8	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	Solder	-55 °C	125 °C	Silver	Nickel	1 GHz	1	Snap-On	Brass	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
