0347960201

Active

Molex

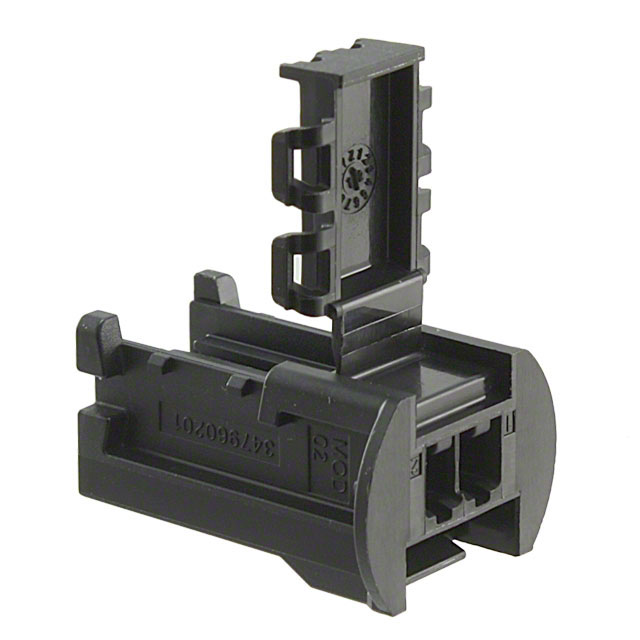

CONN RCPT HSG 2POS 3.50MM

Search across all available documentation for this part.

Active

Molex

CONN RCPT HSG 2POS 3.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	0347960201

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in

Part	Color	Fastening Type	Note	Contact Termination	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Contact Type	Mounting Type	Number of Rows	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0347960402	Natural	Latch Holder	Contacts Not Included	Crimp	3.5 mm	0.138 in	Receptacle	4	Female Socket	Free Hanging (In-Line)	1
Molex 0347960201	Black	Latch Holder	Contacts Not Included	Crimp	3.5 mm	0.138 in	Receptacle	2	Female Socket	Free Hanging (In-Line)	1	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.138" (3.50mm)

Technical documentation and resources
