9304-9113-013

Active

Radiall USA, Inc.

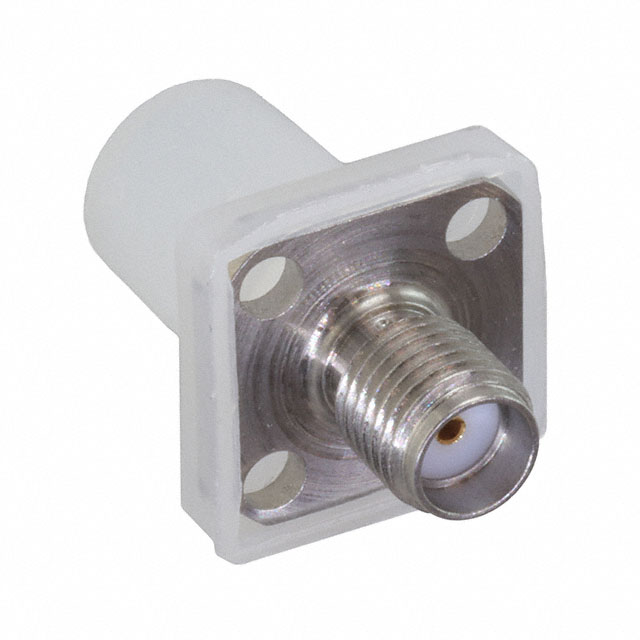

SMA F STR SQF

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F STR SQF

Technical Specifications

Parameters and characteristics for this part

Specification	9304-9113-013

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Features	Center Contact Plating	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Connector Type	Contact Termination	Mounting Feature	Mating Cycles	Body Material	Center Contact Material	Impedance	Number of Ports	Dielectric Material	Shield Termination
Radiall USA, Inc. 9304-9113-013	Extended Insulation	Gold	18 GHz	-65 ░C	165 °C	SMA	Female Socket Jack	Solder	Flange	500	Stainless Steel	Beryllium Copper	50 Ohms	1	Polytetrafluoroethylene (PTFE)	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
