SN242C

Active

Comet America, LP

PT1000TR125/C, TEMP PROBE 10 M

Search across all available documentation for this part.

Active

Comet America, LP

PT1000TR125/C, TEMP PROBE 10 M

Technical Specifications

Parameters and characteristics for this part

Specification	SN242C

Conductor Type	Non-Grounded
Diameter - Protective Tube [diameter]	5 mm
Element Type	Pt1000
Length - Lead Wire [x]	32.808 '
Length - Lead Wire [x]	10 m
Length - Protective Tube	50 mm
Temperature Range [Max]	150 °C
Temperature Range [Min]	-190 °C
Terminal Type	Exposed Lead Wires

Part	Conductor Type	Length - Lead Wire [x]	Length - Lead Wire [x]	Element Type	Length - Protective Tube	Temperature Range [Min]	Temperature Range [Max]	Diameter - Protective Tube [diameter]	Terminal Type
Comet America, LP SN242E	Non-Grounded	32.808 '	10 m	Pt1000	50 mm	-190 °C	150 °C	5 mm	Exposed Lead Wires
Comet America, LP SN242C	Non-Grounded	32.808 '	10 m	Pt1000	50 mm	-190 °C	150 °C	5 mm	Exposed Lead Wires
Comet America, LP SN242M	Non-Grounded	32.808 '	10 m	Pt1000	50 mm	-190 °C	150 °C	5 mm	Exposed Lead Wires

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

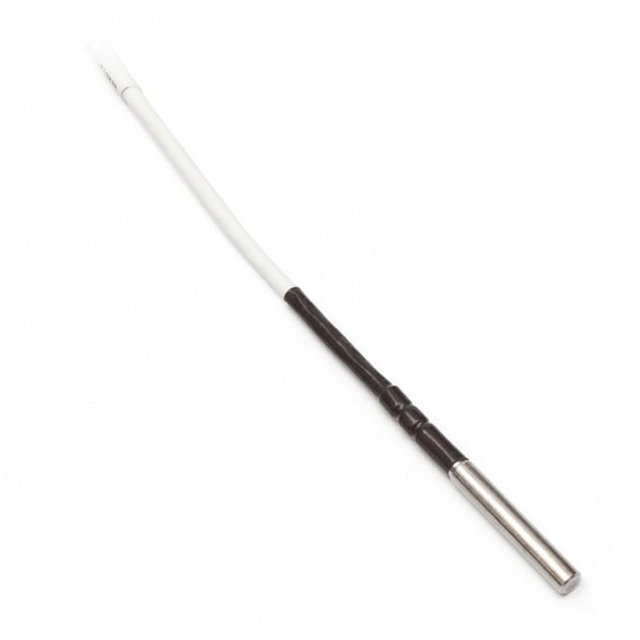

Pt1000 Temperature Sensor -190°C ~ 150°C Non-Grounded Exposed Lead Wires

Technical documentation and resources
