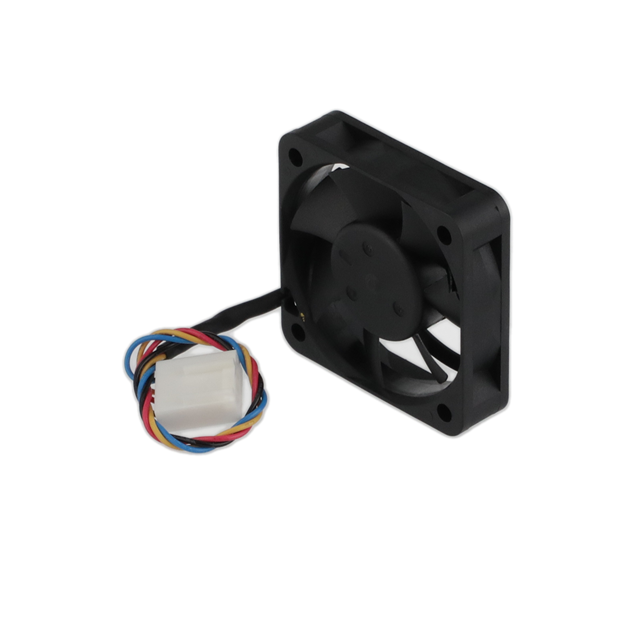

AFB0405MA-AFGE

Active

Delta Electronics

FAN AXIAL 40X10MM 5VDC RECT CONN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AFB0405MA-AFGE

Active

Delta Electronics

FAN AXIAL 40X10MM 5VDC RECT CONN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0405MA-AFGE

Air Flow	5.7 CFM
Air Flow	0.16 m³/min
Approval Agency	CE, cURus, VDE
Bearing Type	Ball
Current Rating (Amps)	50 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	21.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	250 mW
RPM	5000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	26 Pa
Static Pressure	0.104 in H2O
Termination	4 Position Rectangular Connector
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4.5 V
Weight	14.06 g
Weight	0.031 lb
Width [y]	10 mm

AFB0405 Series

Part	Material - Frame	Approval Agency	Air Flow	Air Flow	Bearing Type	Current Rating (Amps)	Material - Blade	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Weight	Weight	Static Pressure	Static Pressure	RPM	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Voltage - Rated	Noise	Width [y]	Termination	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Features
Delta Electronics AFB0405HHA-A	Plastic	CE CSA UL VDE	0.23 mł/min	8.2 CFM	Ball	0.09 A	Plastic	40 mm	Square	40 mm	14.06 g	0.031 lb	47.3 Pa	0.19 in H2O	7000 RPM	450 mW	4 VDC	5.5 V	Tubeaxial	5 V	31.5 dB	10 mm	2 Wire Leads	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics AFB0405HHA-AF00	Plastic	CE CSA UL VDE	0.23 mł/min	8.2 CFM	Ball	0.09 A	Plastic	40 mm	Square	40 mm	14.06 g	0.031 lb	47.3 Pa	0.19 in H2O	7000 RPM	450 mW	4 VDC	5.5 V	Tubeaxial	5 V	31.5 dB	10 mm	3 Wire Leads	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0405LA-A	Plastic	CE CSA UL VDE	0.123 m³/min	4.4 CFM	Ball	30 mA	Plastic	40 mm	Square	40 mm	14.06 g	0.031 lb	17 Pa	0.068 in H2O	4000 RPM	150 mW	4.5 V	5.5 V	Tubeaxial	5 V	16 dB	10 mm	2 Wire Leads	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics AFB0405VHA-A	Plastic	CE CSA UL VDE			Ball	110 mA	Plastic	40 mm	Square	40 mm	14.06 g	0.031 lb	60.3 Pa	0.242 in H2O	8000 RPM	550 mW	4.5 V	5.5 V	Tubeaxial	5 V	35.5 dB	10 mm	2 Wire Leads	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics AFB0405HA-AR00	Plastic	CE CSA UL VDE	0.193 m³/min	6.9 CFM	Ball	70 mA	Plastic	40 mm	Square	40 mm	14.06 g	0.031 lb	34.9 Pa	0.14 in H2O	6000 RPM	350 mW	4.5 V	5.5 V	Tubeaxial	5 V	27 dB(A)	10 mm	3 Wire Leads	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Locked Rotor Sensor
Delta Electronics AFB0405MA-A	Plastic	CE CSA UL VDE	0.16 m³/min	5.7 CFM	Ball	50 mA	Plastic	40 mm	Square	40 mm	14.06 g	0.031 lb	26 Pa	0.104 in H2O	5000 RPM	250 mW	4.5 V	5.5 V	Tubeaxial	5 V	21.5 dB(A)	10 mm	2 Wire Leads	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics AFB0405MA-AFGE	Plastic	CE cURus VDE	0.16 m³/min	5.7 CFM	Ball	50 mA	Plastic	40 mm	Square	40 mm	14.06 g	0.031 lb	26 Pa	0.104 in H2O	5000 RPM	250 mW	4.5 V	5.5 V	Tubeaxial	5 V	21.5 dB(A)	10 mm	4 Position Rectangular Connector	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.33
		10	$ 17.50
		25	$ 15.83
		50	$ 14.58
		100	$ 13.08
		280	$ 12.08
		560	$ 11.25

Description

General part information

AFB0405 Series

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 5.7 CFM (0.160m³/min) 4 Position Rectangular Connector
