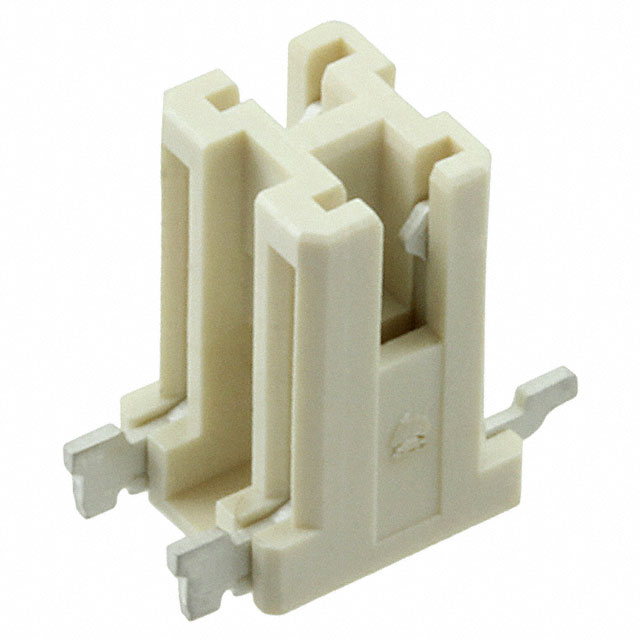

ES6B002WF1R1000

Active

JAE Electronics

CARD EDGE CONNECTOR FOR LED APPL

Search across all available documentation for this part.

Active

JAE Electronics

CARD EDGE CONNECTOR FOR LED APPL

Technical Specifications

Parameters and characteristics for this part

Specification	ES6B002WF1R1000

Connector Type	Receptacle
Contact Finish	Tin
Contact Material	Copper Alloy
Housing Material	Liquid Crystal Polymer (LCP)
Mating Cycles	20
Mounting Type	Surface Mount, Bottom Entry, Through Board
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.11 in
Pitch [x]	2.8 mm
Style	Board to Board - Card Edge
Termination	Solder
Voltage Rating	250 VDC

Part	Mating Cycles	Voltage Rating	Contact Material	Style	Housing Material	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]
JAE Electronics ES6B002WF1R1000	20	250 VDC	Copper Alloy	Board to Board - Card Edge	Liquid Crystal Polymer (LCP)	Solder	2	-40 °C	105 ░C	Receptacle	Bottom Entry Surface Mount Through Board	Tin	0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.96
	Digi-Reel®	1	$ 0.96
	Tape & Reel (TR)	1000	$ 0.60

General part information

SSL Connector 2 Position Receptacle Board to Board - Card Edge 0.110" (2.80mm) Solder
