2SD14850P

Obsolete

Panasonic Industrial Automation Sales

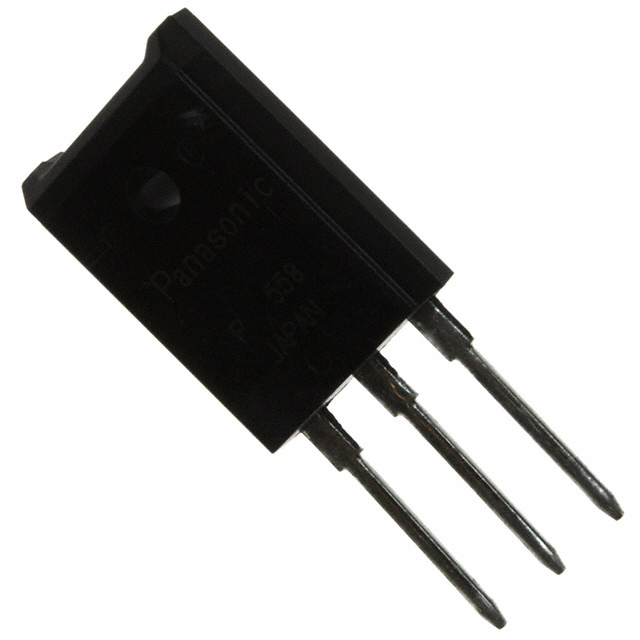

TRANS NPN 100V 5A TOP-3F

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 100V 5A TOP-3F

Technical Specifications

Parameters and characteristics for this part

Specification	2SD14850P

Current - Collector (Ic) (Max)	5 A
Current - Collector Cutoff (Max) [Max]	50 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100 hFE
Frequency - Transition	20 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TOP-3F
Power - Max [Max]	3 W
Supplier Device Package	TOP-3F-A1
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	100 V

Part	Current - Collector (Ic) (Max)	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Operating Temperature	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Mounting Type	Supplier Device Package	Package / Case	Vce Saturation (Max) @ Ib, Ic
Panasonic Industrial Automation Sales 2SD14850P	5 A	100 V	20 MHz	100 hFE	NPN	150 °C	3 W	50 µA	Through Hole	TOP-3F-A1	TOP-3F	2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 100 V 5 A 20MHz 3 W Through Hole TOP-3F-A1
