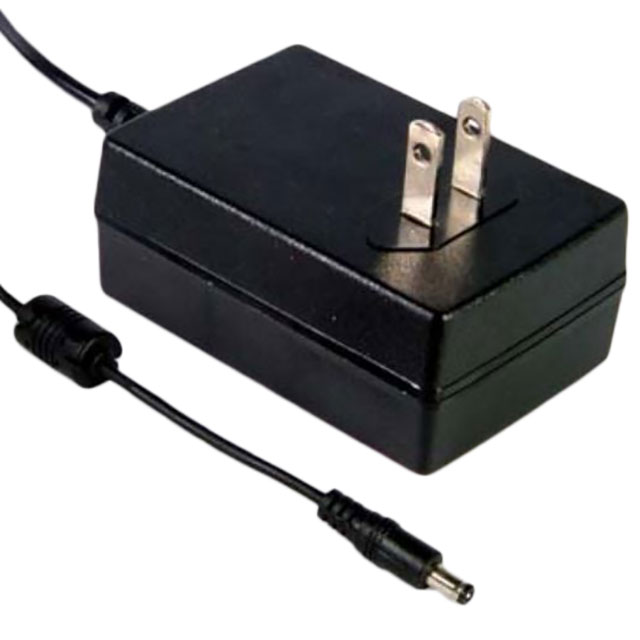

GST18U12-P1M

Active

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 12V 18W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 12V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	GST18U12-P1M

Applications	ITE (Commercial)
Approval Agency	BSMI, cULus, EAC, CB
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	1.5 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	North America
Size / Dimension [x]	79 mm
Size / Dimension [x]	3.11 in
Size / Dimension [y]	2.13 in
Size / Dimension [y]	54 mm
Size / Dimension [z]	1.3 "
Size / Dimension [z]	33 mm
Voltage - Output	12 V

Part	Form	Applications	Voltage - Output	Output Connector	Output Connector [diameter]	Output Connector [x]	Input Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Cord Length	Cord Length	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Current - Output (Max) [Max]	Region Utilized	Input Connector	Efficiency	Approval Agency	Power (Watts)	No Load Power Consumption [Max]
MEAN WELL USA Inc. GST18U12-P1M	Wall Mount (Class II)	ITE (Commercial)	12 V	Barrel Plug	2.5 mm 5.5 mm	11 mm	Fixed Blade	1.3 "	2.13 in	54 mm	79 mm	33 mm	3.11 in	1.2 m	47.2 in	70 °C	-30 ░C	Positive Center	1.5 A	North America	NEMA 1-15P	Level VI	BSMI CB cULus EAC	18 W	75 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
