CE26.5100.151

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	CE26.5100.151

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	2 A
Current Rating - Filter	2 A
Features	Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.5 mm
Panel Cutout Dimensions [y]	53.5 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Voltage Rating - Appliance Inlet	Approval Agency	Ingress Protection	Termination	Termination	Current Rating - Filter	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Filter Type	Fuse Holder, Drawer	Accomodates a Fuse	Mounting Type	Connector Style	Connector Type	Current Rating - Appliance Inlet	Material Flammability Rating
SCHURTER Inc. CE26.5100.151	250 VAC	cULus ENEC	IP40	0.189 " 4.8 mm	Quick Connect	2 A	Voltage Selector	28.5 mm	53.5 mm	Filtered (EMI RFI) - Commercial	Drawer Sold Separate		Flange Panel Mount	IEC 320-C14	Receptacle Male Blades - Module	2 A	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

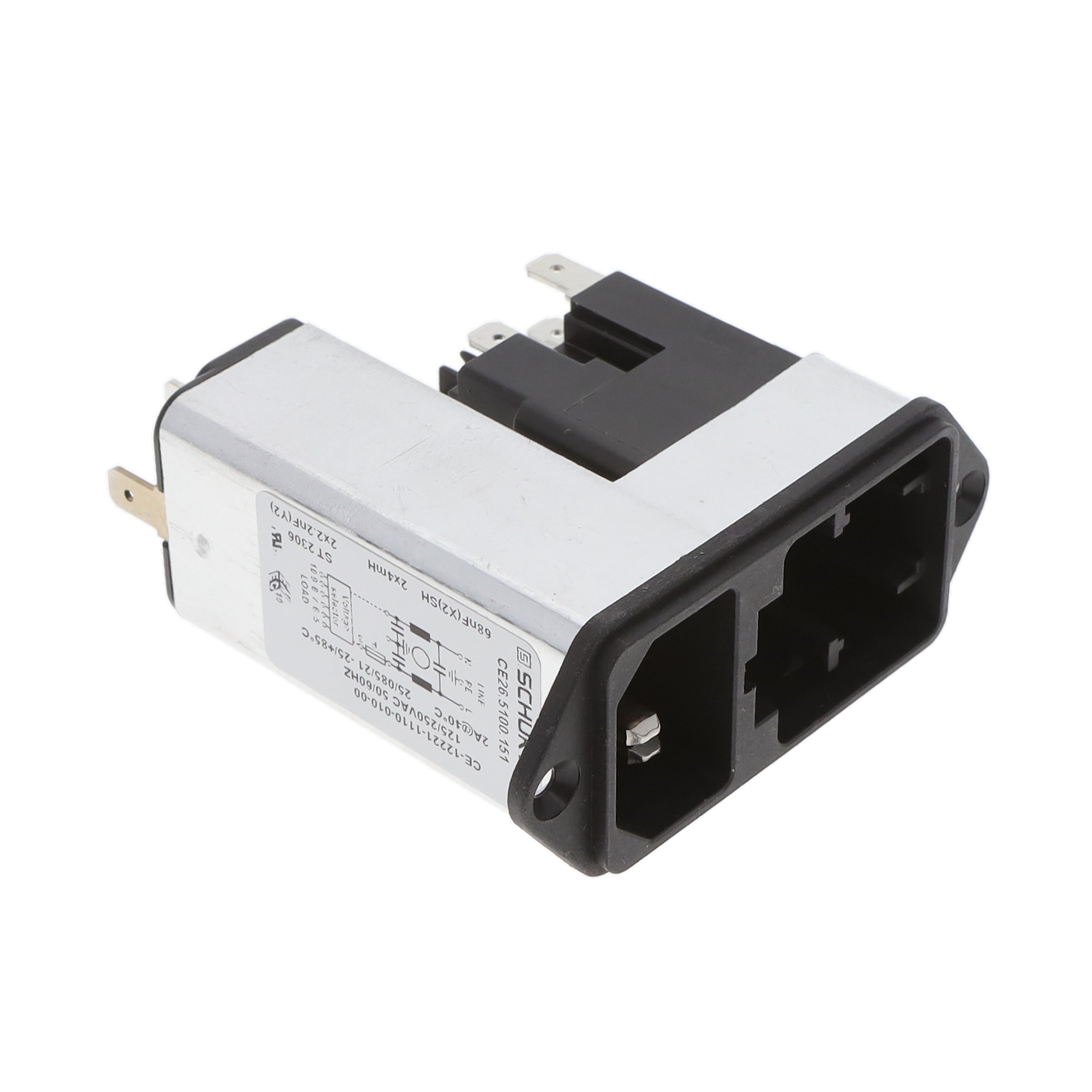

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange

Technical documentation and resources
