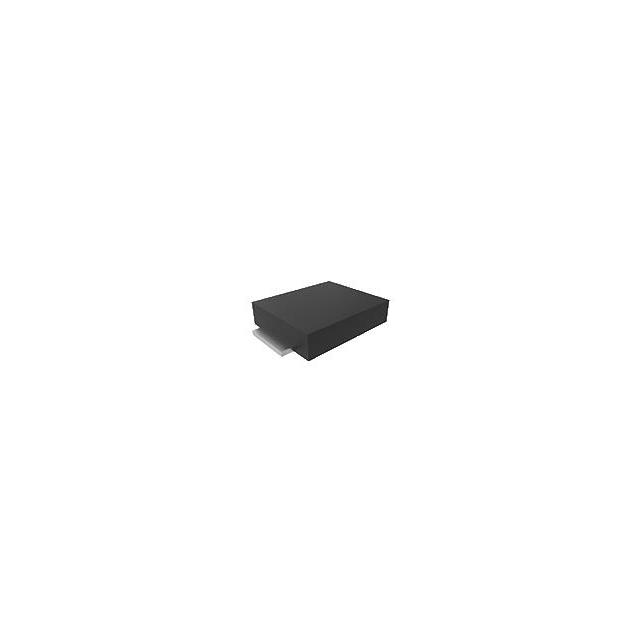

US3GBFL-TP

Active

Micro Commercial Components

RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 3A, 400V V(RRM), SILICON,

Search across all available documentation for this part.

Active

Micro Commercial Components

RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 3A, 400V V(RRM), SILICON,

Technical Specifications

Parameters and characteristics for this part

Specification	US3GBFL-TP

Capacitance @ Vr, F	40 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-50 °C
Package / Case	SMB Flat Leads, DO-221AA
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	SMBF
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Part	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Speed	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]
Micro Commercial Components US3GBFL-TP	3 A	50 ns	1.3 V	Surface Mount	Standard	400 V	DO-221AA SMB Flat Leads	200 mA 500 ns	5 µA	40 pF	SMBF	-50 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.06

General part information

Diode 400 V 3A Surface Mount SMBF
