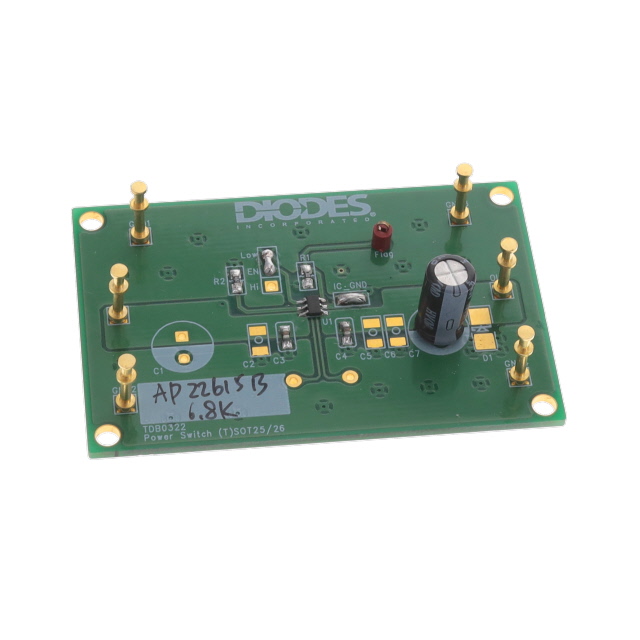

AP22615BWU-EVM

Active

Diodes Inc

EVAL BOARD FOR AP22615B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AP22615BWU-EVM

Active

Diodes Inc

EVAL BOARD FOR AP22615B

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP22615BWU-EVM

Contents	Board(s)
Function	Power Distribution Switch (Load Switch)
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	AP22615B

AP22615 Series

3.0A Adjustable Single Channel Power Distribution Switch With Output Ovp

Part	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Package / Case	Ratio - Input:Output [custom]	Switch Type	Output Configuration	Fault Protection	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Interface	Rds On (Typ)	Input Type	Mounting Type	Features	Current - Output (Max) [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Type	Supplied Contents	Function	Contents	Utilized IC / Part
Diodes Inc AP22615BWU-7	5.5 V	3 V	SOT-23-6 Thin TSOT-23-6	1:1	USB Switch	High Side	Over Current Over Temperature Over Voltage Short Circuit	N/P-Channel	85 °C	-40 °C	1	On/Off	40 mOhm	Non-Inverting	Surface Mount	Load Discharge Status Flag	3 A	3 V	5.5 V
Diodes Inc AP22615AWU-7	5.5 V	3 V	SOT-23-6 Thin TSOT-23-6	1:1	USB Switch	High Side	Over Current Over Temperature Over Voltage Short Circuit	N/P-Channel	85 °C	-40 °C	1	On/Off	40 mOhm	Non-Inverting	Surface Mount	Load Discharge Status Flag	3 A	3 V	5.5 V
Diodes Inc AP22615BWU-EVM																				Power Management	Board(s)	Power Distribution Switch (Load Switch)	Board(s)	AP22615B
Diodes Inc AP22615AWU-EVM																				Power Management	Board(s)	Power Distribution Switch (Load Switch)	Board(s)	AP22615A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.17

Description

General part information

AP22615 Series

The AP22815/615 is a 3A/Adjustable single channel current-limited high-side power switch with output OVP optimized for USB and other hot-swap applications which need to have over voltage protection from output to protection the system. The AP22815/615 complies with USB standards and is available with both polarities of Enable input. AP22815 supports fixed current-limited feature, while AP22615 equips adjustable current-limited feature optimized for applications that require precision current limiting support. It supports USB PD3.0 fast role swap function. The output voltage could recovery to USB valid voltage range within 110us during USB PD fast role swap event.
