VLA504-01

Obsolete

Powerex Inc.

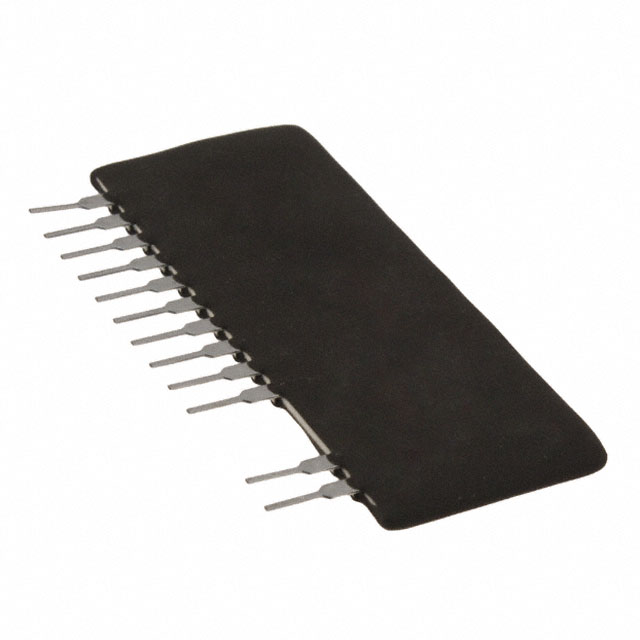

IC GATE DRVR HI/LOW SIDE MODULE

Search across all available documentation for this part.

Obsolete

Powerex Inc.

IC GATE DRVR HI/LOW SIDE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	VLA504-01

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	3 A
Current - Peak Output (Source, Sink) [custom]	3 A
Driven Configuration	High-Side, Low-Side
Gate Type	IGBT
Input Type	Non-Inverting
Mounting Type	Through Hole
Number of Drivers	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Package / Case	14-SIP Module, 12 Leads
Rise / Fall Time (Typ) [custom]	300 ns
Rise / Fall Time (Typ) [custom]	300 ns
Supplier Device Package	Module
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	14 V

Part	Input Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Channel Type	Gate Type	Supplier Device Package	Driven Configuration	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Drivers	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Package / Case
Powerex Inc. VLA504-01	Non-Inverting	Through Hole	60 °C	-20 °C	Single	IGBT	Module	High-Side Low-Side	300 ns	300 ns	1	15 V	14 V	3 A	3 A	14-SIP Module 12 Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

High-Side or Low-Side Gate Driver IC Non-Inverting Module
