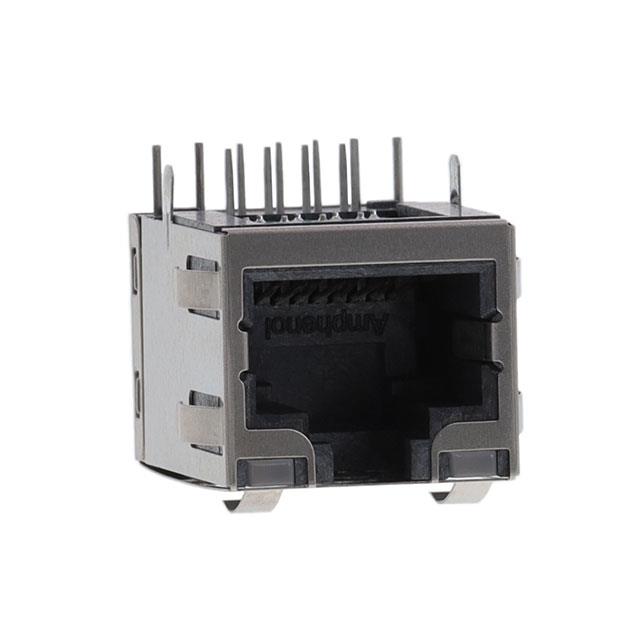

RJE1A18854A1

Active

Amphenol ICC (Commercial Products)

8P8C, RA, CAT5E, SHIELD WITH TOP

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

8P8C, RA, CAT5E, SHIELD WITH TOP

Technical Specifications

Parameters and characteristics for this part

Specification	RJE1A18854A1

Connector Type	Jack
Contact Finish	Gold
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Ratings	Cat5e
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Orientation	Number of Rows	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Tab Direction	Contact Finish	Housing Material	Termination	Contact Material	Mounting Type	LED Color	Connector Type	Shielding	Number of Positions/Contacts	Ratings
Amphenol ICC (Commercial Products) RJE1A1885411	90 °	1	1	85 °C	-55 °C	Up	Gold	Thermoplastic	Solder	Phosphor Bronze	Through Hole	Green Yellow	Jack	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Cat5e
Amphenol ICC (Commercial Products) RJE1A1885441	90 °	1	1	85 °C	-55 °C	Up	Gold	Thermoplastic	Solder	Phosphor Bronze	Through Hole	Green Yellow	Jack	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Cat5e
Amphenol ICC (Commercial Products) RJE1A18854A1	90 °	1	1	85 °C	-55 °C	Up	Gold	Thermoplastic	Solder	Phosphor Bronze	Through Hole	Green Yellow	Jack	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Cat5e

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
