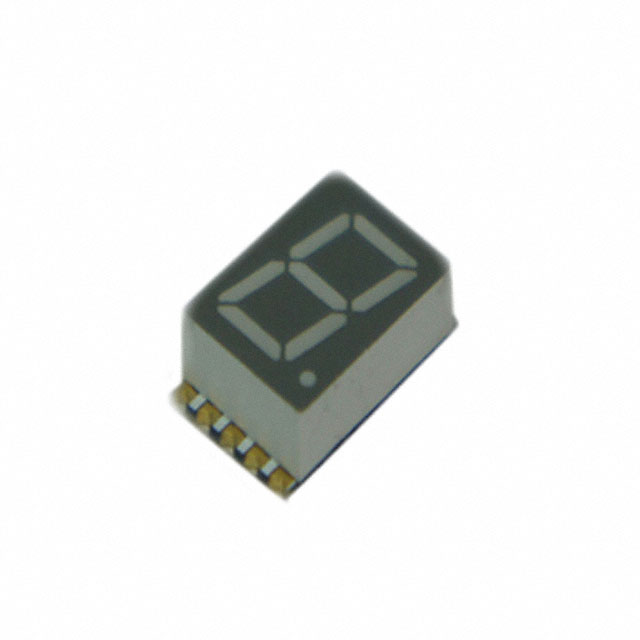

QBSS400R
ActiveQT Brightek (QTB)
DISPLAY 7-SEG 0.4" SGL RED 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBSS400R
ActiveQT Brightek (QTB)
DISPLAY 7-SEG 0.4" SGL RED 10SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBSS400R |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 10.16 mm |
| Digit/Alpha Size [custom] | 0.4 in |
| Display Type | 7-Segment |
| Millicandela Rating | 20 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Power Dissipation (Max) [Max] | 70 mW |
| Size / Dimension [x] | 0.512 in |
| Size / Dimension [x] | 13 mm |
| Size / Dimension [y] | 9.25 mm |
| Size / Dimension [y] | 0.364 in |
| Size / Dimension [z] | 0.124 in |
| Size / Dimension [z] | 3.15 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.79 | |
| Digi-Reel® | 1 | $ 2.79 | ||
| Tape & Reel (TR) | 100 | $ 1.43 | ||
| 500 | $ 1.29 | |||
| 1000 | $ 1.11 | |||
| 2500 | $ 1.05 | |||
| 5000 | $ 1.03 | |||
Description
General part information
QBSS400 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.512" H x 0.364" W x 0.124" D (13.00mm x 9.25mm x 3.15mm) 10-SMD, No Lead
