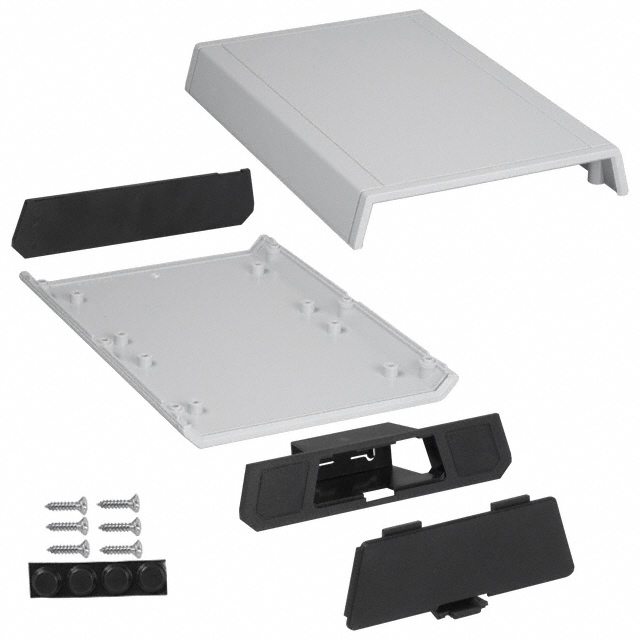

A419V,GY

Active

Serpac

BOX ABS GRAY 7.12"L X 5"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 7.12"L X 5"W

Technical Specifications

Parameters and characteristics for this part

Specification	A419V,GY

Area (L x W) [custom]	230 cm²
Area (L x W) [custom]	35.6 in²
Color	Gray
Container Type	Box
Design	Split Sides and End Panel(s)
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	33.27 mm
Height [z]	1.31 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	7.12 "
Size / Dimension [x]	180.85 mm
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Thickness	0.12 in
Thickness	3.05 mm
Weight	210.01 g
Weight	0.463 lb

Part	Design	Ratings	Material	Container Type	Height [z]	Height [z]	Features	Features	Material Flammability Rating	Area (L x W) [custom]	Area (L x W) [custom]	Weight	Weight	Color	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Serpac A419V,GY	Split Sides and End Panel(s)	IP40	Plastic ABS	Box	33.27 mm	1.31 in	Battery Compartment PCB Supports	9 V	UL94 HB	230 cm²	35.6 in²	210.01 g	0.463 lb	Gray	0.12 in	3.05 mm	7.12 "	5 "	127 mm	180.85 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.94

General part information

Box Plastic, ABS Gray Split Sides and End Panel(s) 7.120" L x 5.000" W (180.85mm x 127.00mm) X 1.310" (33.27mm)
