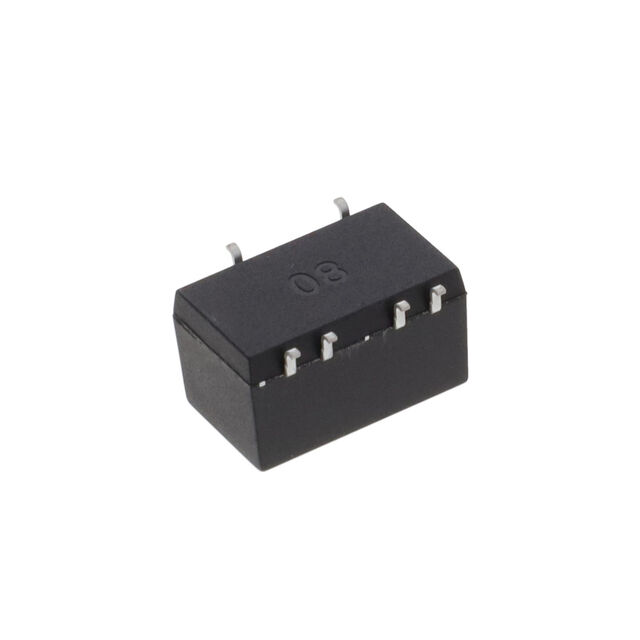

TSH 1212D
Traco Power
DC DC CONVERTER +/-12V 1.9W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSH 1212D
Traco Power
DC DC CONVERTER +/-12V 1.9W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSH 1212D |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 80 mA |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6 Leads |
| Package / Case | 18-SMD Module |
| Power (Watts) | 1.9 W |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [x] | 15.3 mm |
| Size / Dimension [y] | 0.37 " |
| Size / Dimension [y] | 9.3 mm |
| Size / Dimension [z] | 9.2 mm |
| Size / Dimension [z] | 0.36 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 20.60 | |
| 10 | $ 17.98 | |||
| 25 | $ 17.39 | |||
| 50 | $ 16.95 | |||
| 100 | $ 16.53 | |||
| 250 | $ 15.98 | |||
| 500 | $ 15.58 | |||
Description
General part information
TSH 1212 Series
Isolated Module DC DC Converter 2 Output 12V -12V 80mA, 80mA 10.8V - 13.2V Input
