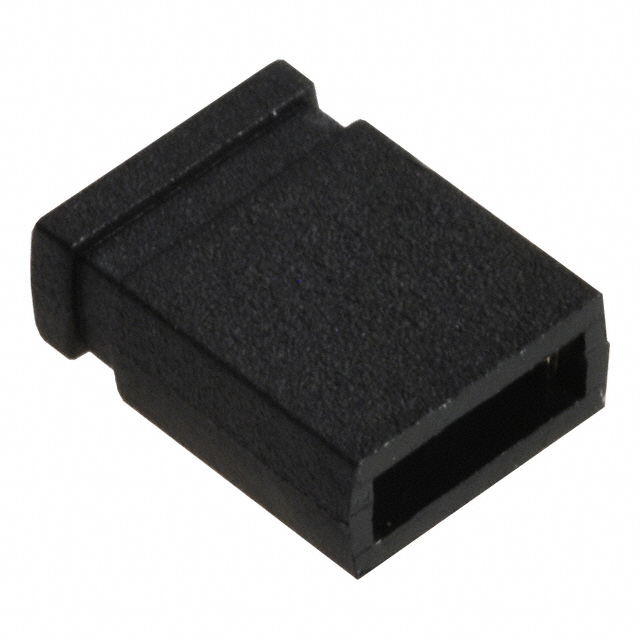

SSC02SYAN
ActiveSullins Connector Solutions
CONN JUMPER SHORTING GOLD
Deep-Dive with AI
Search across all available documentation for this part.
SSC02SYAN
ActiveSullins Connector Solutions
CONN JUMPER SHORTING GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSC02SYAN |
|---|---|
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Current Rating (Amps) | 3 A |
| Gender | Female Sockets |
| Height [z] | 6.5 mm |
| Height [z] | 0.256 " |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) [custom] | 1 x 2 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Type | Closed Top |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.21 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| 3000 | $ 0.09 | |||
Description
General part information
SSC02 Series
2 (1 x 2) Position Shunt Connector Black Closed Top 0.100" (2.54mm) Gold
Documents
Technical documentation and resources
No documents available
