3956L

Obsolete

ebm-papst Inc.

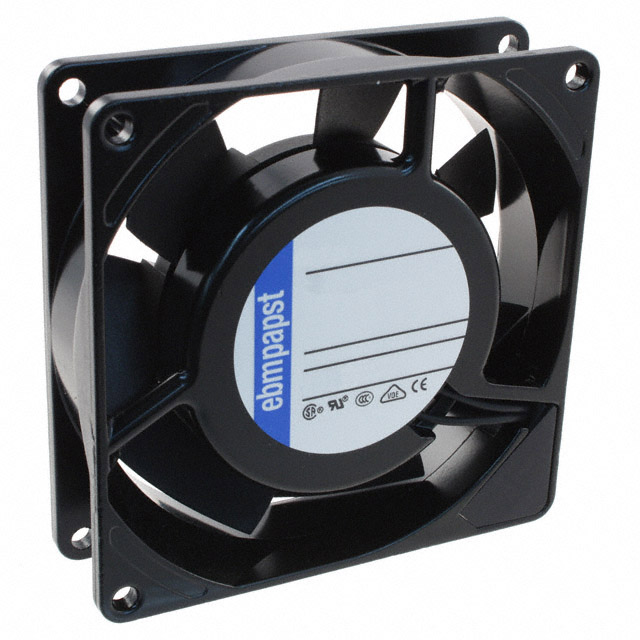

FAN AXIAL 92X25MM 230VAC TERM

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

FAN AXIAL 92X25MM 230VAC TERM

Technical Specifications

Parameters and characteristics for this part

Specification	3956L

Air Flow	18.2 CFM
Air Flow	0.51 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Nylon, Mineral Reinforced, Polyamide (PA)
Material - Frame	Metal
Noise	24 dB
Operating Temperature [Max]	80 °C
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	6 W
RPM	1550 RPM
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	0.617 lb
Weight	279.87 g
Width [y]	25 mm

Part	RPM	Air Flow	Air Flow	Power (Watts)	Approval Agency	Voltage - Rated	Fan Type	Lifetime @ Temp.	Weight	Weight	Material - Blade	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Noise	Material - Frame	Termination	Bearing Type
ebm-papst Inc. 3956L	1550 RPM	18.2 CFM	0.51 m³/min	6 W	CE CSA UL VDE	230 VAC	Tubeaxial	70000 Hrs	0.617 lb	279.87 g	Mineral Reinforced Nylon Polyamide (PA)	80 °C	-40 °C	-40 °C	80 C	25 mm	24 dB	Metal	2 Terminals	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 48.84

General part information

Fan Tubeaxial 230VAC Square - 92mm L x 92mm H Ball 18.2 CFM (0.510mł/min) 2 Terminals
