TG-A482K-15-15-0.1-0

t-Global Technology

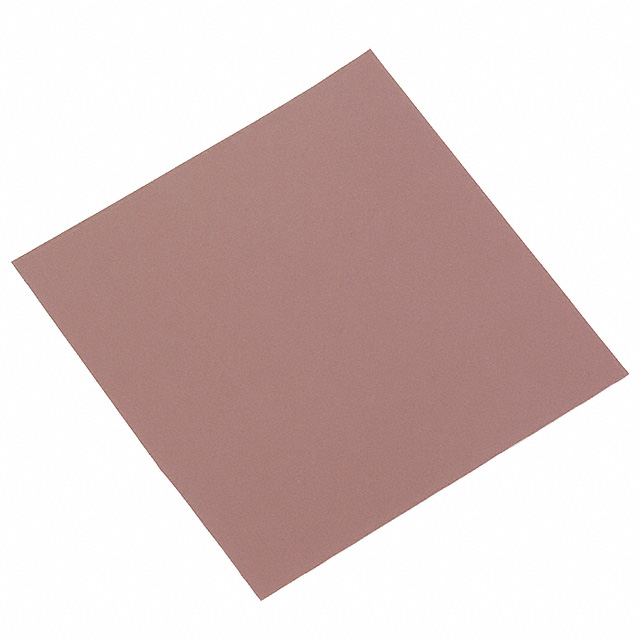

THERM PAD 15MMX15MM RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsThermal Pad Tolerance Die-Cut Tolerence Guide +3

TG-A482K-15-15-0.1-0

t-Global Technology

THERM PAD 15MMX15MM RED

Deep-Dive with AI

DocumentsThermal Pad Tolerance Die-Cut Tolerence Guide +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TG-A482K-15-15-0.1-0

Color	Red
Material	Silicone
Outline [x]	15 mm
Outline [y]	15 mm
Shape	Square
Shelf Life	24 Months
Shelf Life Start	Date of Purchase
Thermal Conductivity	2.3 W/m-K
Thickness	0.1 mm
Thickness	0.0039 in
Type	Conductive Pad, Sheet

TG-A482K Series

Part	Shelf Life Start	Thermal Conductivity	Material	Type	Thickness	Thickness	Shape	Outline [y]	Outline [x]	Shelf Life	Color	Thickness [custom]	Thickness [custom]
t-Global Technology TG-A482K-40-40-0.1-0	Date of Purchase	2.3 W/m-K	Silicone	Conductive Pad Sheet	0.1 mm	0.0039 in	Square	40 mm	40 mm	24 Months	Red
t-Global Technology TG-A482K-50M-320-0.1-0	Date of Purchase	2.3 W/m-K	Silicone	Conductive Pad Roll	0.1 mm	0.0039 in	Rectangular	320 mm	50 m	24 Months	Red
t-Global Technology TG-A482K-100-100-0.2-0	Date of Purchase	2.3 W/m-K	Silicone	Conductive Pad Sheet	0.203 mm	0.008 in	Square	100 mm	100 mm	24 Months	Red
t-Global Technology TG-A482K-50M-320-0.3-0	Date of Purchase	2.3 W/m-K	Silicone	Conductive Pad Roll			Rectangular	320 mm	50 m	24 Months	Red	0.305 mm	0.012 "
t-Global Technology TG-A482K-50M-320-0.15-0	Date of Purchase	2.3 W/m-K	Silicone	Conductive Pad Roll	0.152 mm	0.006 in	Rectangular	320 mm	50 m	24 Months	Red
t-Global Technology TG-A482K-300-300-0.2-0	Date of Purchase	2.3 W/m-K	Silicone	Conductive Pad Sheet	0.203 mm	0.008 in	Square	300 mm	300 mm	24 Months	Red
t-Global Technology TG-A482K-20-20-0.1-0	Date of Purchase	2.3 W/m-K	Silicone	Conductive Pad Sheet	0.1 mm	0.0039 in	Square	20 mm	20 mm	24 Months	Red
t-Global Technology TG-A482K-150-150-0.2-0	Date of Purchase	2.3 W/m-K	Silicone	Conductive Pad Sheet	0.203 mm	0.008 in	Square	150 mm	150 mm	24 Months	Red
t-Global Technology TG-A482K-320-320-0.2-0	Date of Purchase	2.3 W/m-K	Silicone	Conductive Pad Sheet	0.203 mm	0.008 in	Square	320 mm	320 mm	24 Months	Red
t-Global Technology TG-A482K-15-15-0.1-0	Date of Purchase	2.3 W/m-K	Silicone	Conductive Pad Sheet	0.1 mm	0.0039 in	Square	15 mm	15 mm	24 Months	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 0.11
		10	$ 0.09
		25	$ 0.09
		50	$ 0.09
		100	$ 0.08
		250	$ 0.08
		500	$ 0.08
		1000	$ 0.07
		5000	$ 0.07
