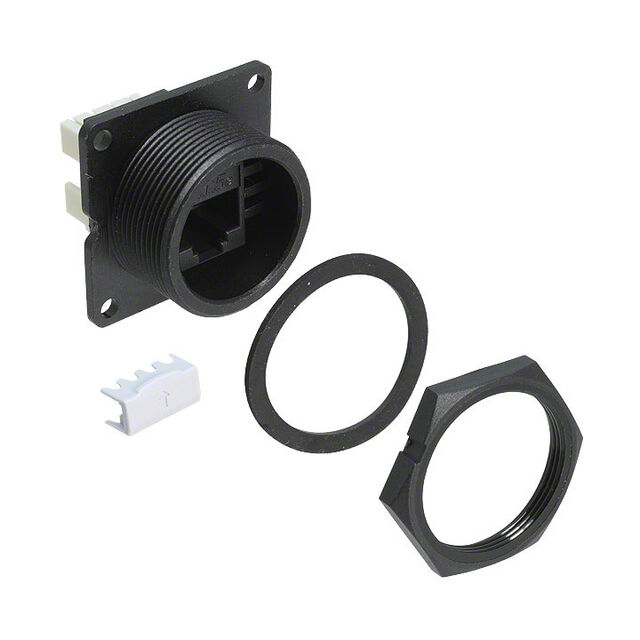

DCP-RJ5T-SD

Active

Conxall/Switchcraft

CONN MOD JACK 8P8C UNSHIELDED

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN MOD JACK 8P8C UNSHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	DCP-RJ5T-SD

Connector Type	Jack
Contact Finish	Gold
Contact Material	Copper Alloy
Features	Circular Threaded Coupling
Housing Material	Thermoplastic
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Panel Mount, Flange
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Unshielded
Tab Direction	User Selectable
Termination	IDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Ingress Protection	Contact Material	Shielding	Shell Material, Finish	Mounting Type	Ratings	Housing Material	Features	Convert From (Adapter End)	Convert To (Adapter End)	Contact Finish	Number of Ports	LED Color	Connector Type	Tab Direction	Number of Positions/Contacts	Termination	Number of Rows	Orientation	Orientation
Conxall/Switchcraft DCP-RJ5T-F	-10 °C	60 °C	Coupler	IP67/IP68 - Dust Tight Waterproof	Copper Alloy	Unshielded	Thermoplastic	Flange Panel Mount	Cat5e	Thermoplastic	Circular Threaded Coupling	Jack 8p8c (RJ45)	8p8c (RJ45) Jack	Gold
Conxall/Switchcraft DCP-RJ5B-F	-10 °C	60 °C	Coupler	IP67/IP68 - Dust Tight Waterproof	Copper Alloy	Unshielded	Thermoplastic	Flange Panel Mount	Cat5e	Thermoplastic	Quick Connect	Jack 8p8c (RJ45)	8p8c (RJ45) Jack	Gold
Conxall/Switchcraft DCP-RJ5SB-RD	-10 °C	60 °C		IP67/IP68 - Dust Tight Waterproof	Copper Alloy	Shielded		Flange Panel Mount	Cat5e	Thermoplastic	Quick Connect			Gold	1	Does Not Contain LED	Jack	Down	8p8c (RJ45 Ethernet)	IDC	1	90 °
Conxall/Switchcraft DCP-RJ5T-SD	-10 °C	60 °C		IP67/IP68 - Dust Tight Waterproof	Copper Alloy	Unshielded		Flange Panel Mount	Cat5e	Thermoplastic	Circular Threaded Coupling			Gold	1	Does Not Contain LED	Jack	User Selectable	8p8c (RJ45 Ethernet)	IDC	1		Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat5e
