BIS14PLN03121020F

Active

Souriau-Sunbank by Eaton

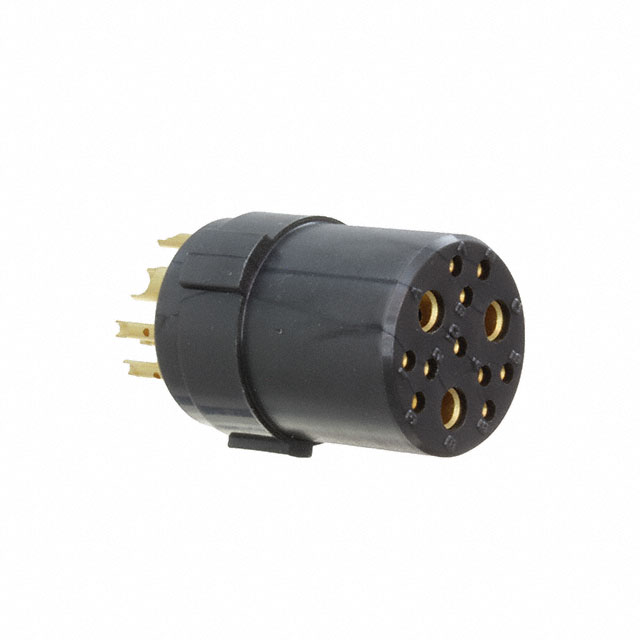

CONN FMALE INSERT 13P SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BIS14PLN03121020F

Applications	Marine
Connector Type	Female Sockets, Insert
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7 A, 26 A
Features	Insert Only, Requires Shell
Ingress Protection	Water Resistant
Insert Material	Molybdenum Disulfide (MoS2), Polyamide (PA66), Nylon 6/6
Number of Positions	13
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shielding	Unshielded

BIS14PL Series

Part	Contact Finish - Mating	Number of Positions	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Features	Current Rating (Amps)	Applications	Ingress Protection	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Insert Material	Orientation	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert
Souriau-Sunbank by Eaton BIS14PLN1920F	Gold	19	19	14	Insert Only Requires Shell	7 A	Marine	Water Resistant	Female Sockets Insert	Copper Alloy	-20 C	70 °C	Unshielded	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed
Souriau-Sunbank by Eaton BIS14PLN0412F	Gold	4			Insert Only Requires Shell	26 A	Marine	Water Resistant	Female Sockets Insert	Copper Alloy	-20 C	70 °C	Unshielded	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed	4	14
Souriau-Sunbank by Eaton BIS14PLN1216M	Gold	12			Insert Only Requires Shell	14 A	Marine	Water Resistant	Insert Male Pins	Copper Alloy	-20 C	70 °C	Unshielded	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed			14-12
Souriau-Sunbank by Eaton BIS14PLN0412M	Gold	4			Insert Only Requires Shell	26 A	Marine	Water Resistant	Insert Male Pins	Copper Alloy	-20 C	70 °C	Unshielded	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed	4	14
Souriau-Sunbank by Eaton BIS14PLN1216F	Gold	12			Insert Only Requires Shell	14 A	Marine	Water Resistant	Female Sockets Insert	Copper Alloy	-20 C	70 °C	Unshielded	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed			14-12
Souriau-Sunbank by Eaton BIS14PLN1920M	Gold	19	19	14	Insert Only Requires Shell	7 A	Marine	Water Resistant	Insert Male Pins	Copper Alloy	-20 C	70 °C	Unshielded	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed
Souriau-Sunbank by Eaton BIS14PLN0714F	Gold	7			Insert Only Requires Shell	20 A	Marine	Water Resistant	Female Sockets Insert	Copper Alloy	-20 C	70 °C	Unshielded	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed	7	14
Souriau-Sunbank by Eaton BIS14PLN03121020F	Gold	13			Insert Only Requires Shell	7 A 26 A	Marine	Water Resistant	Female Sockets Insert	Copper Alloy	-20 C	70 °C	Unshielded	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 138.96
		10	$ 127.51
		25	$ 122.61
		50	$ 118.52

Description

General part information

BIS14PL Series

13 Position Circular Connector Insert, Female Sockets Solder Cup
