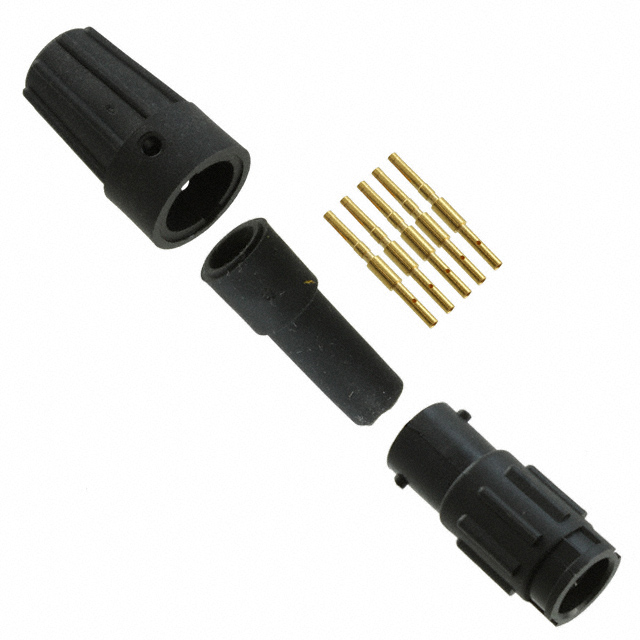

18980-5SG-522
ActiveConxall/Switchcraft
CONN RCPT FMALE 5POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
18980-5SG-522
ActiveConxall/Switchcraft
CONN RCPT FMALE 5POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 18980-5SG-522 |
|---|---|
| Applications | Medical, Data, Instrumentation, Industrial |
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [Max] [diameter] | 5.84 mm |
| Cable Opening [Max] [diameter] | 0.23 in |
| Cable Opening [Min] [diameter] | 0.22 in |
| Cable Opening [Min] [diameter] | 5.59 mm |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | B |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 8.79 | |
Description
General part information
18980-5S Series
5 Position Circular Connector Receptacle, Female Sockets Crimp
