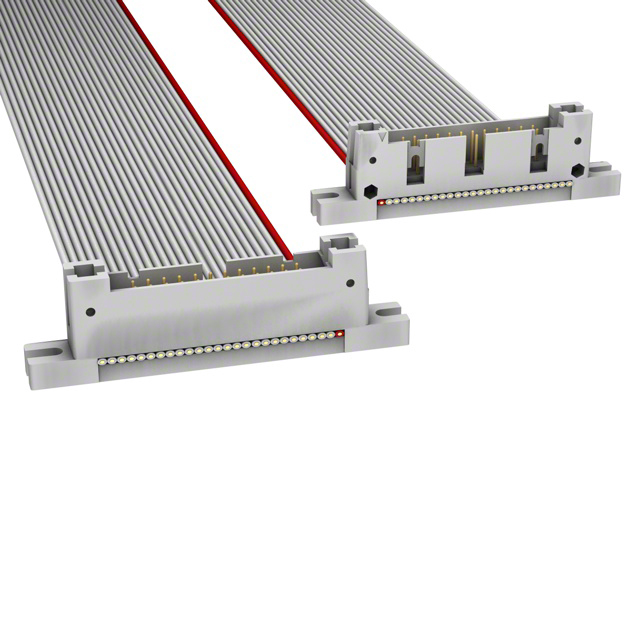

H3WWH-2606G

Active

Assmann WSW Components

IDC CBL - HHPL24H/AE26G/HHPL26H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHPL24H/AE26G/HHPL26H

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Shielding	Color	Features	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Length	Length	Length	Number of Rows	Connector Type	Contact Finish	Number of Positions	Length [x]	Length [x]
Assmann WSW Components H3WWH-2606M	0.1 in	2.54 mm	Unshielded	Multiple Ribbon	Flange Polarizing Key	0.05 "	1.27 mm	15 µin	0.38 µm	IDC	152.4 mm	6 "	0.5 '	2	Plug to Plug	Gold	26
Assmann WSW Components H3WWH-2618G	0.1 in	2.54 mm	Unshielded		Flange Polarizing Key	0.05 "	1.27 mm	15 µin	0.38 µm	IDC				2	Plug to Plug	Gold	26	457.2 mm	1.5 ft
Assmann WSW Components H3WWH-2636M	0.1 in	2.54 mm	Unshielded	Multiple Ribbon	Flange Polarizing Key	0.05 "	1.27 mm	15 µin	0.38 µm	IDC				2	Plug to Plug	Gold	26	914.4 mm	3 ft
Assmann WSW Components H3WWH-2636G	0.1 in	2.54 mm	Unshielded		Flange Polarizing Key	0.05 "	1.27 mm	15 µin	0.38 µm	IDC				2	Plug to Plug	Gold	26	914.4 mm	3 ft
Assmann WSW Components H3WWH-2618M	0.1 in	2.54 mm	Unshielded	Multiple Ribbon	Flange Polarizing Key	0.05 "	1.27 mm	15 µin	0.38 µm	IDC				2	Plug to Plug	Gold	26	457.2 mm	1.5 ft
Assmann WSW Components H3WWH-2606G	0.1 in	2.54 mm	Unshielded		Flange Polarizing Key	0.05 "	1.27 mm	15 µin	0.38 µm	IDC	152.4 mm	6 "	0.5 '	2	Plug to Plug	Gold	26

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")
