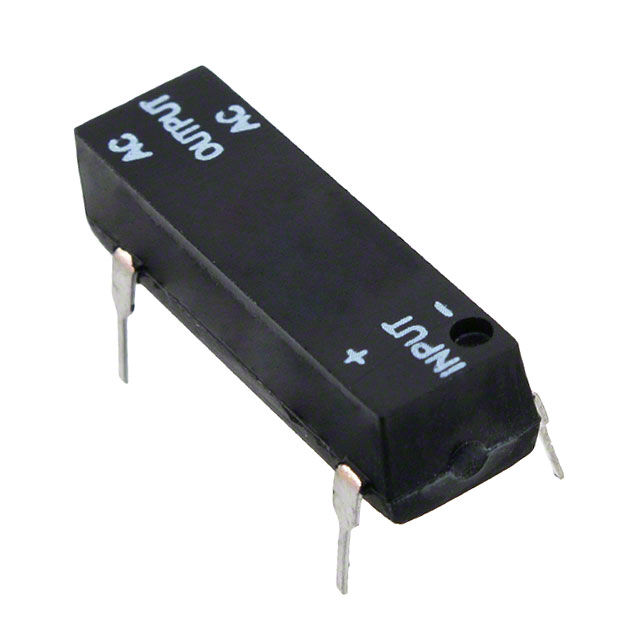

DIP2415
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 1.5A 20-280V
Deep-Dive with AI
Search across all available documentation for this part.
DIP2415
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 1.5A 20-280V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DIP2415 |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 1.5 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | 4 Lead, 7.62 mm, 0.3 in |
| Package / Case | 16-DIP |
| Supplier Device Package | 16-DIP |
| Termination Style | PC Pin |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DIP241 Series
Solid State SPST-NO (1 Form A) 16-DIP (0.300", 7.62mm), 4 Leads
