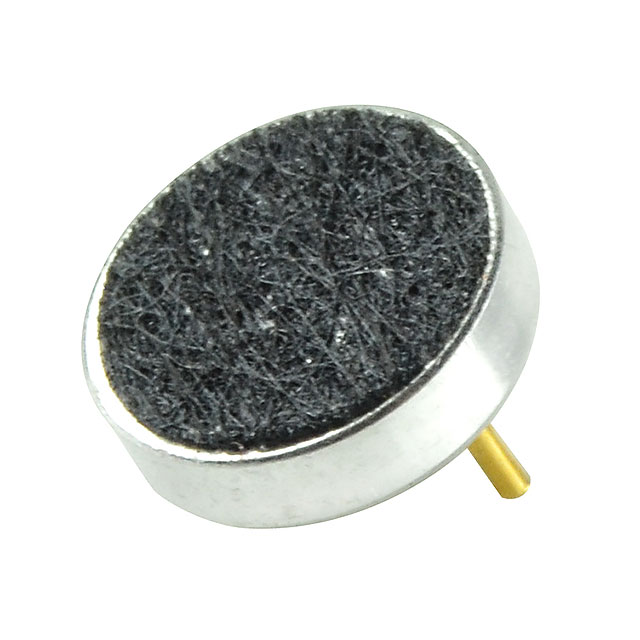

CMC-6018-38P
ActiveCUI Devices
MIC COND ANLG OMNI -38DB 0.236"D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMC-6018-38P
ActiveCUI Devices
MIC COND ANLG OMNI -38DB 0.236"D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMC-6018-38P |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) [Max] | 2 mm |
| Height (Max) [Max] | 0.079 in |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 58 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 6 mm |
| Size / Dimension [diameter] | 0.236 in |
| Termination | PC Pins |
| Type | Electret Condenser |
| Voltage - Rated | 2 VDC |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.91 | |
| 10 | $ 1.56 | |||
| 25 | $ 1.43 | |||
| 50 | $ 1.35 | |||
| 100 | $ 1.27 | |||
| 300 | $ 1.15 | |||
| 500 | $ 1.10 | |||
| 1000 | $ 1.04 | |||
| 5000 | $ 1.01 | |||
Description
General part information
CMC-6018 Series
100 Hz ~ 20 kHz Analog Microphone Electret Condenser 2 V ~ 10 V Omnidirectional (-38dB ±3dB @ 94dB SPL) PC Pins
