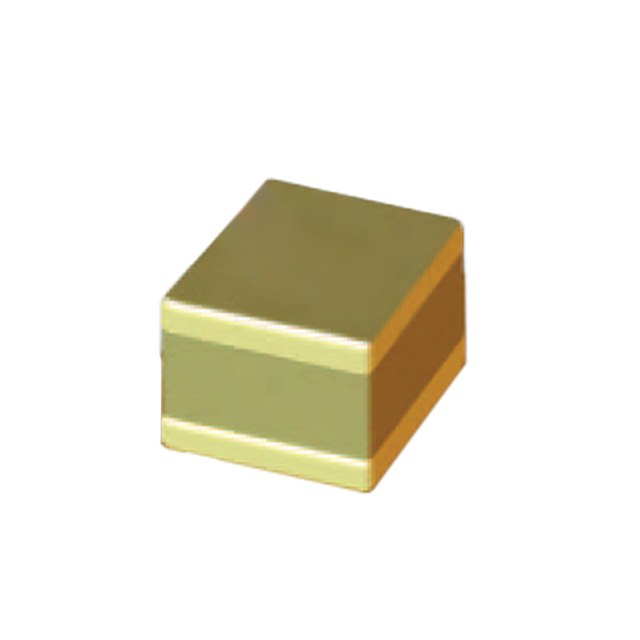

V30BZ102M6SX

Active

Knowles Johanson Manufacturing

CAP CER 1000PF 200V X7R 0303

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

CAP CER 1000PF 200V X7R 0303

Technical Specifications

Parameters and characteristics for this part

Specification	V30BZ102M6SX

Applications	RF, High Frequency, Bypass, Microwave, Decoupling
Capacitance	0.001 µF
Features	Single Layer, Epoxy Mountable
Mounting Type	SLCC, Epoxy, Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0303 (0808 Metric)
Size / Dimension [x]	0.76 mm
Size / Dimension [x]	0.03 "
Size / Dimension [y]	0.76 mm
Size / Dimension [y]	0.03 "
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.64 mm
Thickness (Max) [Max]	0.025 in
Tolerance	20 %
Voltage - Rated	200 V

Part	Mounting Type	Applications	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Capacitance	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient
Knowles Johanson Manufacturing V30BZ472M1SX	Epoxy SLCC Surface Mount	Bypass Decoupling High Frequency Microwave RF	20 %	0.64 mm	0.025 in	0303 (0808 Metric)	4700 pF	Epoxy Mountable Single Layer	0.76 mm	0.76 mm	0.03 "	0.03 "	100 V	-55 °C	125 °C	X7R
Knowles Johanson Manufacturing V30BZ102M6SX	Epoxy SLCC Surface Mount	Bypass Decoupling High Frequency Microwave RF	20 %	0.64 mm	0.025 in	0303 (0808 Metric)	0.001 µF	Epoxy Mountable Single Layer	0.76 mm	0.76 mm	0.03 "	0.03 "	200 V	-55 °C	125 °C	X7R
Knowles Johanson Manufacturing V30BZ682M1SX	Epoxy SLCC Surface Mount	Bypass Decoupling High Frequency Microwave RF	20 %	0.64 mm	0.025 in	0303 (0808 Metric)	6800 pF	Epoxy Mountable Single Layer	0.76 mm	0.76 mm	0.03 "	0.03 "	100 V	-55 °C	125 °C	X7R

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 pF ±20% 200V Ceramic Capacitor X7R 0303 (0808 Metric)
