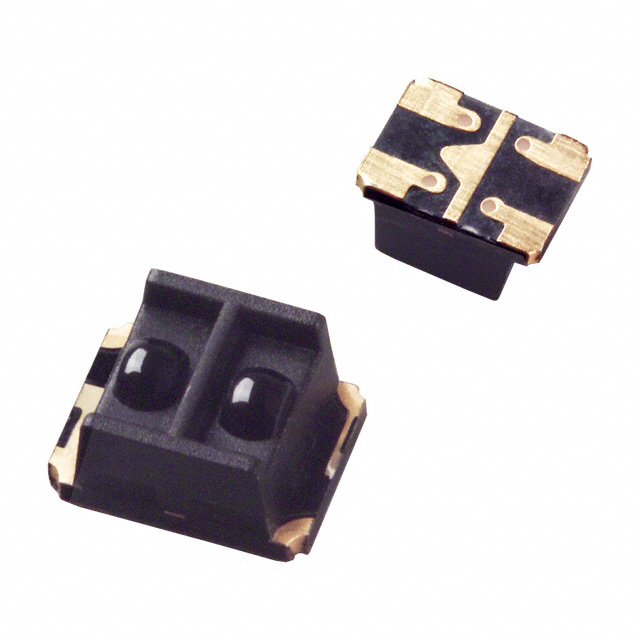

GP2S700HCP
ActiveSHARP/Socle Technology
PHOTOINTERRUPTER REFLEC 3MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
GP2S700HCP
ActiveSHARP/Socle Technology
PHOTOINTERRUPTER REFLEC 3MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GP2S700HCP |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-SMD |
| Response Time | 20 µs |
| Sensing Distance | 5.5 mm |
| Sensing Distance | 0.217 " |
| Sensing Method | Reflective |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.72 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.03 | |||
| 100 | $ 0.95 | |||
| 500 | $ 0.80 | |||
| Digi-Reel® | 1 | $ 1.72 | ||
| 10 | $ 1.29 | |||
| 25 | $ 1.03 | |||
| 100 | $ 0.95 | |||
| 500 | $ 0.80 | |||
| Tape & Reel (TR) | 1000 | $ 0.71 | ||
| 3000 | $ 0.69 | |||
| 5000 | $ 0.64 | |||
| 10000 | $ 0.60 | |||
Description
General part information
GP2S700 Series
Reflective Optical Sensor 0.217" (5.5mm) 4-SMD
Documents
Technical documentation and resources
No documents available
