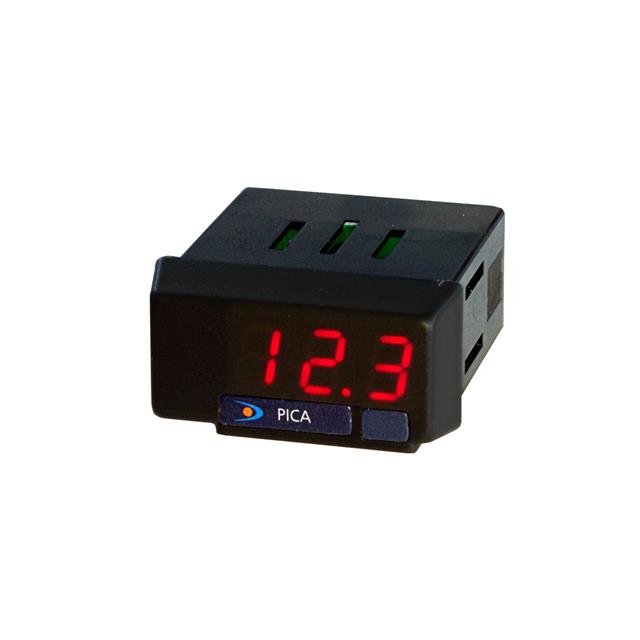

PICA40-LP

Active

DITEL

LOOP POWERED 4-20 MA PANEL METER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PICA40-LP

Active

DITEL

LOOP POWERED 4-20 MA PANEL METER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PICA40-LP

Display Characters - Height [z]	0.394 in
Display Characters - Height [z]	10 mm
Display Type	LCD - Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Type	Current
Number of Characters Per Row	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	22 mm
Termination Style	Connector
Type	Ammeter

- Series

Part	Display Characters - Height [z]	Display Characters - Height [z]	Number of Characters Per Row	Features	Measuring Range	Ingress Protection	Measuring Type	Display Type	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Measuring Range [Min]	Measuring Range [Max]	Output Type	Display Characters - Height [custom]	Display Characters - Height [custom]
DITEL JR-P	14 mm	0.551 in	4	Excitation Supply	Multiple	IP65 - Dust Tight Water Resistant	Process Resistance Thermocouple	LED - Red Characters	-10 °C	60 °C	92 mm	45 mm	Multifunction Meter	11 V 20 VAC	265 VDC 265 VAC	Connector
DITEL MICRA-M	14 mm	0.551 in	5			IP65 - Dust Tight Water Resistant	RTD Thermocouple	LED - Tri-Color Bar Graph	-10 °C	60 °C	92 mm	45 mm	Temperature Meter	85 VAC 100 VDC	265 VAC 300 VDC	Connector	-150 °C	1300 °C
DITEL MICRA-D	14 mm	0.551 in	5			IP65 - Dust Tight Water Resistant	Frequency	LED - Tri-Color Bar Graph	-10 °C	60 °C	92 mm	45 mm	Frequency Meter	85 VAC 100 VDC	265 VAC 300 VDC	Connector	0 kHz	20 kHz
DITEL PICA-E	10 mm	0.394 in	4			IP65 - Dust Tight Water Resistant	Current Voltage	LCD - Red Characters	-10 °C	60 °C	45 mm	22 mm	Ammeter Volmeter	85 VAC 100 VDC	265 VAC 300 VDC	Connector	1 A 100 VAC/VDC	5 A 600 VAC/VDC
DITEL IDEAL-P	14 mm	0.551 in	4	Excitation Supply			Process RTD Thermocouple	LED - White Characters					Process Temperature Meter	20 VAC	265 VAC	Connector	-200 V -150 °C -20 mA	20 mA 200 V 1300 °C
DITEL JR20-P			4	Excitation Supply	Multiple	IP65 - Dust Tight Water Resistant	Process Resistance Thermocouple	LED - Red Characters	-10 °C	60 °C	92 mm	45 mm	Multifunction Meter	11 V 20 VAC	265 VDC 265 VAC	Connector			Relay (2)	0.787 in	20 mm
DITEL PICA40-LP	10 mm	0.394 in	4			IP65 - Dust Tight Water Resistant	Current	LCD - Red Characters	-10 °C	60 °C	45 mm	22 mm	Ammeter			Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	2	$ 117.00

Description

General part information

- Series

Ammeter LCD - Red Characters Display Panel Mount
