EK-S6-SP601-G

Obsolete

AMD

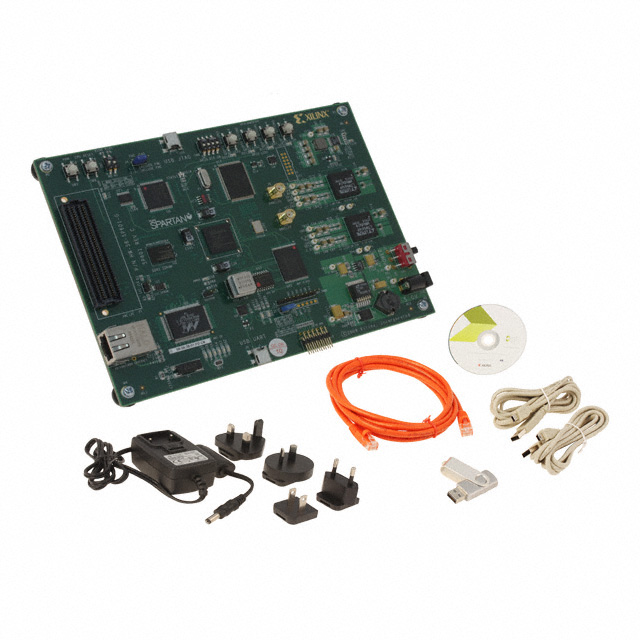

KIT EVAL SPARTAN 6 SP601

Search across all available documentation for this part.

Obsolete

AMD

KIT EVAL SPARTAN 6 SP601

Technical Specifications

Parameters and characteristics for this part

Specification	EK-S6-SP601-G

Contents	Cable(s), Board(s), Power Supply
For Use With/Related Products	XC6SLX16
Interconnect System	FMC
Platform	Spartan-6 LX FPGA SP601
Suggested Programming Environment	ISE
Utilized IC / Part	XC6SLX16

Part	Total RAM Bits	Mounting Type	Package / Case	Number of Logic Elements/Cells	Number of LABs/CLBs	Supplier Device Package	Number of I/O	Operating Temperature [Min]	Operating Temperature [Max]	Utilized IC / Part	Suggested Programming Environment	Interconnect System	Contents	Platform	For Use With/Related Products
AMD XC6SLX16-3CPG196C	589824	Surface Mount	196-TFBGA CSBGA	14579	1139	196-CSPBGA (8x8)	106	0 °C	85 °C
AMD XC6SLX16-3FT256C	589824	Surface Mount	256-LBGA	14579	1139	256-FTBGA (17x17)	186	0 °C	85 °C
AMD XC6SLX16-2FTG256C	589824	Surface Mount	256-LBGA	14579	1139	256-FTBGA (17x17)	186	0 °C	85 °C
AMD XC6SLX16-3FT256I	589824	Surface Mount	256-LBGA	14579	1139	256-FTBGA (17x17)	186	-40 C	100 °C
AMD XC6SLX16-L1CPG196I	589824	Surface Mount	196-TFBGA CSBGA	14579	1139	196-CSPBGA (8x8)	106	-40 C	100 °C
AMD XC6SLX16-2FT256I	589824	Surface Mount	256-LBGA	14579	1139	256-FTBGA (17x17)	186	-40 C	100 °C
AMD XC6SLX16-3CSG225C	589824	Surface Mount	225-LFBGA CSPBGA	14579	1139	225-CSPBGA (13x13)	160	0 °C	85 °C
AMD XC6SLX16-N3CSG225I	589824	Surface Mount	225-LFBGA CSPBGA	14579	1139	225-CSPBGA (13x13)	160	-40 C	100 °C
AMD EK-S6-SP601-G										XC6SLX16	ISE	FMC	Board(s) Cable(s) Power Supply	Spartan-6 LX FPGA SP601	XC6SLX16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Spartan-6 LX FPGA SP601 XC6SLX16 Spartan®-6 LX FPGA Evaluation Board
