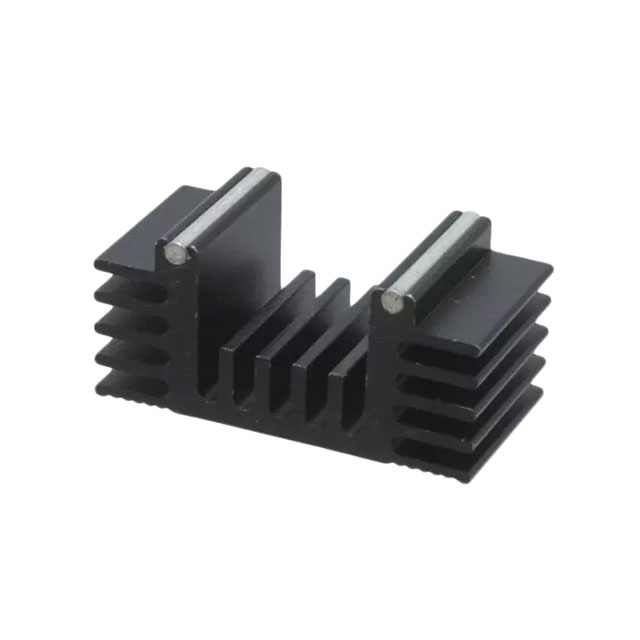

219-263A

Active

Wakefield-Vette

TO-263 HEAT SINK ANODZD

Search across all available documentation for this part.

Active

Wakefield-Vette

TO-263 HEAT SINK ANODZD

Technical Specifications

Parameters and characteristics for this part

Specification	219-263A

Attachment Method	Solderable Feet
Fin Height	12.19 mm
Fin Height	0.48 "
Length	0.5 in
Length	12.7 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-263 (D˛Pak)
Power Dissipation @ Temperature Rise	2 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	8 °C/W
Type	Top Mount
Width [x]	1.02 "
Width [x]	25.91 mm

Part	Attachment Method	Power Dissipation @ Temperature Rise	Material	Package Cooled	Thermal Resistance @ Forced Air Flow	Type	Width [x]	Width [x]	Fin Height [z]	Fin Height [z]	Shape	Material Finish	Length	Length	Fin Height	Fin Height
Wakefield-Vette 219-263B-TR	Solderable Feet	2 W	Aluminum	TO-263 (D˛Pak)	8 °C/W	Top Mount	35.25 mm	1.386 in	0.46 in	11.68 mm	Rectangular Fins	Black Anodized	0.5 in	12.7 mm
Wakefield-Vette 219-263A	Solderable Feet	2 W	Aluminum	TO-263 (D˛Pak)	8 °C/W	Top Mount	25.91 mm	1.02 "			Rectangular Fins	Black Anodized	0.5 in	12.7 mm	12.19 mm	0.48 "
Wakefield-Vette 219-263A-TR	Solderable Feet	2 W	Aluminum	TO-263 (D˛Pak)	8 °C/W	Top Mount	25.91 mm	1.02 "			Rectangular Fins	Black Anodized	0.5 in	12.7 mm	12.19 mm	0.48 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-263 (D˛Pak) Aluminum 2.0W @ 30°C Top Mount
