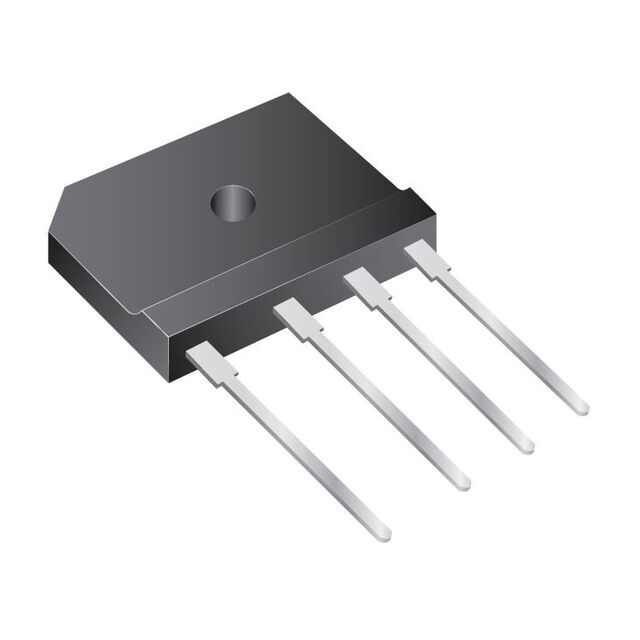

VSIB4A60-E3/45

Obsolete

Vishay General Semiconductor - Diodes Division

BRIDGE RECT 1P 600V 2.3A GSIB-5S

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

BRIDGE RECT 1P 600V 2.3A GSIB-5S

Technical Specifications

Parameters and characteristics for this part

Specification	VSIB4A60-E3/45

Current - Average Rectified (Io)	2.3 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	GSIB-5S, 4-SIP
Supplier Device Package	GSIB-5S
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Current - Average Rectified (Io)	Diode Type	Package / Case	Supplier Device Package	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Mounting Type
Vishay General Semiconductor - Diodes Division VSIB4A60-E3/45	2.3 A	Single Phase	4-SIP GSIB-5S	GSIB-5S	Standard	-55 °C	150 °C	1 V	5 µA	600 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole GSIB-5S

Technical documentation and resources
