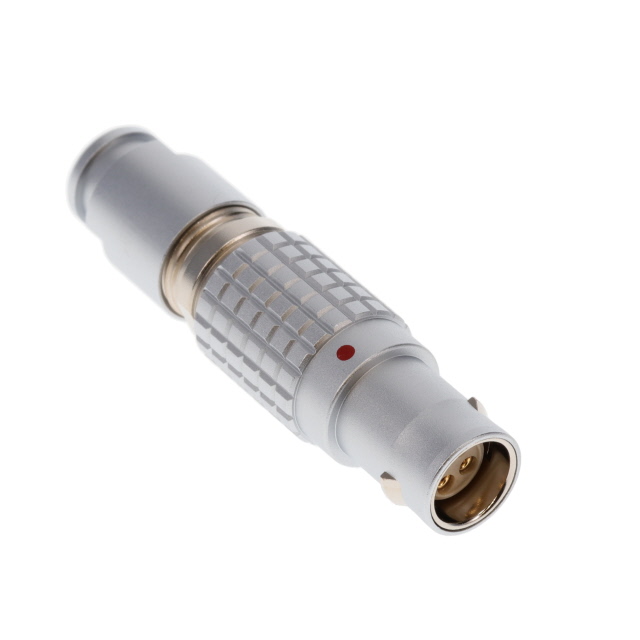

FGK.1B.304.CLLD52Z
ActiveLEMO
CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FGK.1B.304.CLLD52Z
ActiveLEMO
CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FGK.1B.304.CLLD52Z |
|---|---|
| Backshell Material, Plating | Brass, Chrome |
| Cable Opening [diameter] | 0.205 in, 0.165 in |
| Cable Opening [diameter] | 4.2 mm |
| Cable Opening [diameter] | 5.2 mm |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám |
| Contact Material | Bronze |
| Current Rating (Amps) | 10 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | K |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 304 |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.97 | |
| 10 | $ 40.35 | |||
| 25 | $ 38.80 | |||
| 50 | $ 37.51 | |||
| 100 | $ 35.44 | |||
| 250 | $ 34.40 | |||
Description
General part information
FGK.1B Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
