M3202 SL001

Active

ALPHA WIRE

CABLE 2COND 22AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 22AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M3202 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.189 in
Jacket (Insulation) Diameter [diameter]	4.8 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2095
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Wire Gauge	Cable Type	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Ratings	Shield Material	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Length	Length
ALPHA WIRE M3202 SL005	22 AWG	Multi-Conductor	85 %	0.02 in	0.508 mm	Braid	2	-20 C	80 C	300 V	UL Style 2095	Copper Tinned	Poly-Vinyl Chloride (PVC)	Slate	0.189 in	4.8 mm	Copper Tinned	Poly-Vinyl Chloride (PVC)	28	7	30.5 m	100 ft
ALPHA WIRE M3202 SL001	22 AWG	Multi-Conductor	85 %	0.02 in	0.508 mm	Braid	2	-20 C	80 C	300 V	UL Style 2095	Copper Tinned	Poly-Vinyl Chloride (PVC)	Slate	0.189 in	4.8 mm	Copper Tinned	Poly-Vinyl Chloride (PVC)	28	7			1000 ft	304.8 m
ALPHA WIRE M3202 SL002	22 AWG	Multi-Conductor	85 %	0.02 in	0.508 mm	Braid	2	-20 C	80 C	300 V	UL Style 2095	Copper Tinned	Poly-Vinyl Chloride (PVC)	Slate	0.189 in	4.8 mm	Copper Tinned	Poly-Vinyl Chloride (PVC)	28	7	152.4 m	500 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.13

General part information

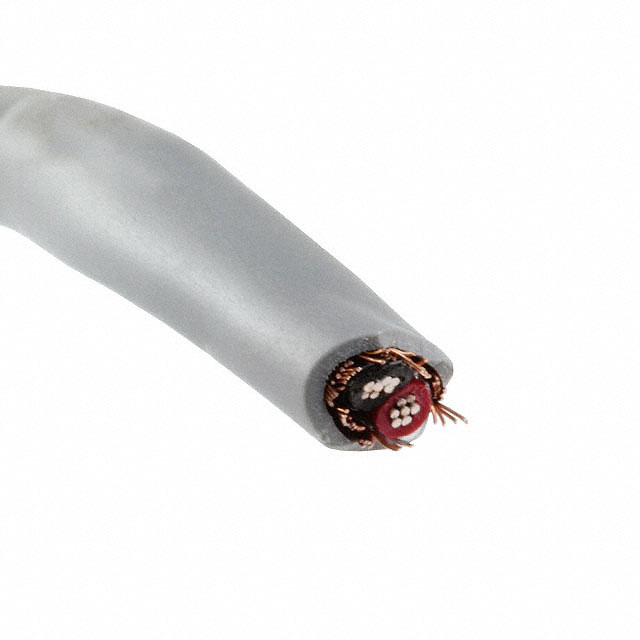

2 Conductor Multi-Conductor Cable Slate 22 AWG Braid 1000.0' (304.8m)
