8-1415536-6
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8-1415536-6
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-1415536-6 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 15 mA |
| Coil Resistance | 1.6 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 6400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 15.8 VDC |
| Must Release Voltage | 1.8 VDC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin, Quick Connect |
| Termination Style | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.84 | |
| 10 | $ 11.41 | |||
| 25 | $ 10.84 | |||
| 40 | $ 10.27 | |||
| 80 | $ 9.70 | |||
| 300 | $ 8.85 | |||
| 600 | $ 8.27 | |||
| 1200 | $ 7.85 | |||
Description
General part information
1415536 Series

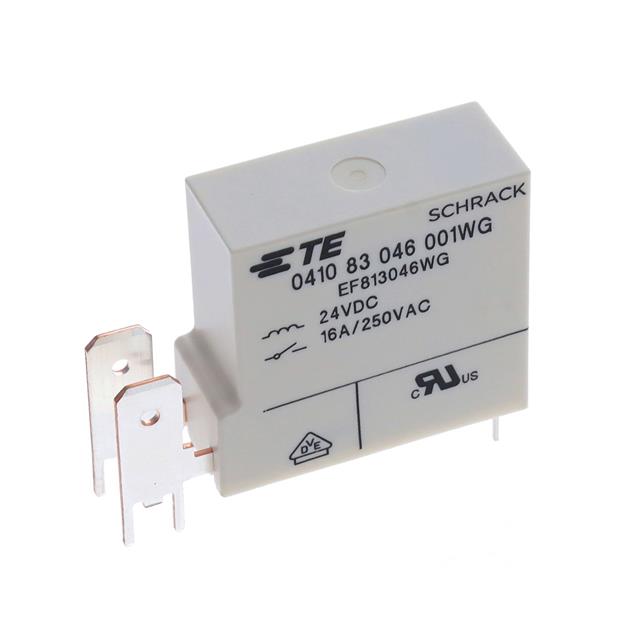

General Purpose Relay SPST-NO (DM) (1 Form X) 24VDC Coil Through Hole
