R302255000150

Active

Radiall USA, Inc.

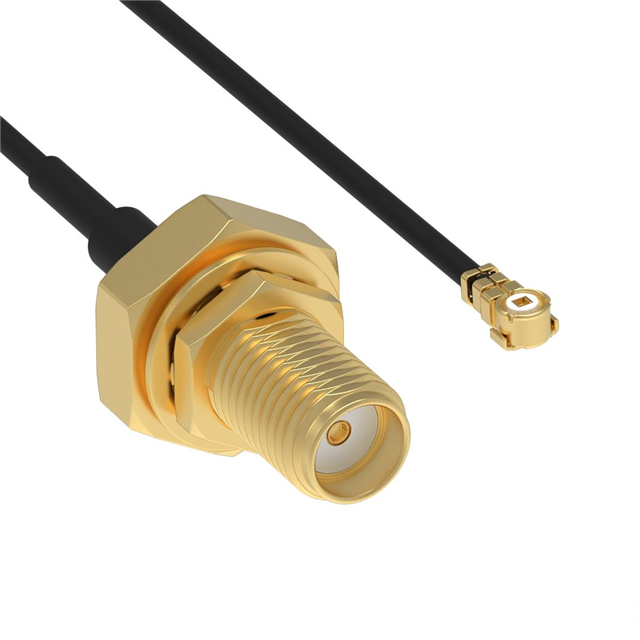

CBL ASSY MML-SMA JACK-PLG 5.906"

Deep-Dive with AI

Search across all available documentation for this part.

R302255000150

Active

Radiall USA, Inc.

CBL ASSY MML-SMA JACK-PLG 5.906"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R302255000150

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MML Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Color	Black
Frequency - Max [Max]	6000 MHz
Length [x]	150 mm
Length [x]	5.906 "
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	MML to SMA

R30225 Series

Part	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	1st Connector Mounting Feature	2nd Connector Mounting Type	Overall Impedance	1st Connector Mounting Type	Style	Color	1st Contact Gender	2nd Connector	Length [x]	Length [x]	2nd Contact Gender
Radiall USA, Inc. R302255000100	6000 MHz	90 °C	-40 °C	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Panel Mount	MML to SMA	Black	Female	MML Plug Right Angle	0.1 m	3.937 in	Male
Radiall USA, Inc. R302255001100	6000 MHz	90 °C	-40 °C	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Panel Mount	MML to SMA	Black	Female	MML Plug Right Angle	0.1 m	3.937 in	Male
Radiall USA, Inc. R302255015100	6000 MHz	90 °C	-40 °C	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Panel Mount	MML to SMA	Black	Male	MML Plug Right Angle	0.1 m	3.937 in	Female
Radiall USA, Inc. R302255000300	6000 MHz	90 °C	-40 °C	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Panel Mount	MML to SMA	Black	Female	MML Plug Right Angle	300 mm	11.811 in	Male
Radiall USA, Inc. R302255003250	6000 MHz	90 °C	-40 °C	MML Plug Right Angle			50 Ohms	Free Hanging (In-Line)	MML to Cable	Black	Female	Cable (Round)	250 mm	9.843 "
Radiall USA, Inc. R302255003300	6000 MHz	90 °C	-40 °C	MML Plug Right Angle			50 Ohms	Free Hanging (In-Line)	MML to Cable	Black	Female	Cable (Round)	300 mm	11.811 in
Radiall USA, Inc. R302255002100	6000 MHz	90 °C	-40 °C	SMA Plug		Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	MML to SMA	Black	Male	MML Plug Right Angle	0.1 m	3.937 in	Female
Radiall USA, Inc. R302255000150	6000 MHz	90 °C	-40 °C	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 Ohms	Panel Mount	MML to SMA	Black	Female	MML Plug Right Angle	150 mm	5.906 "	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 12.17

Description

General part information

R30225 Series

Cable Assembly Coaxial MML to SMA 5.906" (150.00mm)

Documents

Technical documentation and resources

No documents available
